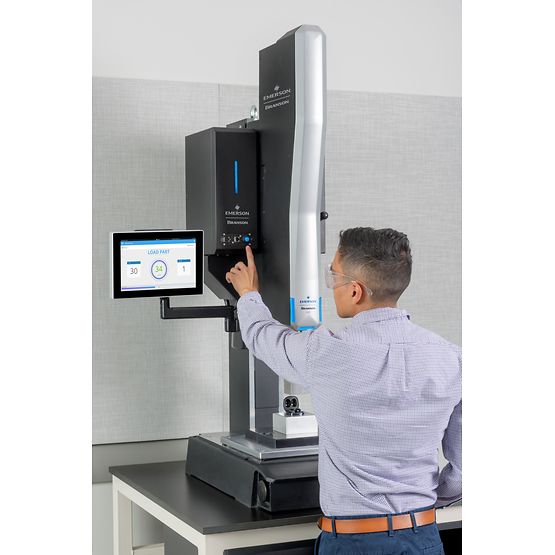

Branson GSX Ultrasonic Welder
Actuation:Electro mechanical advanced actuation system
Control level: Elite Precision, Elite Precision+
Data Interface:USB
Frequency:20, 30, 40 kHz

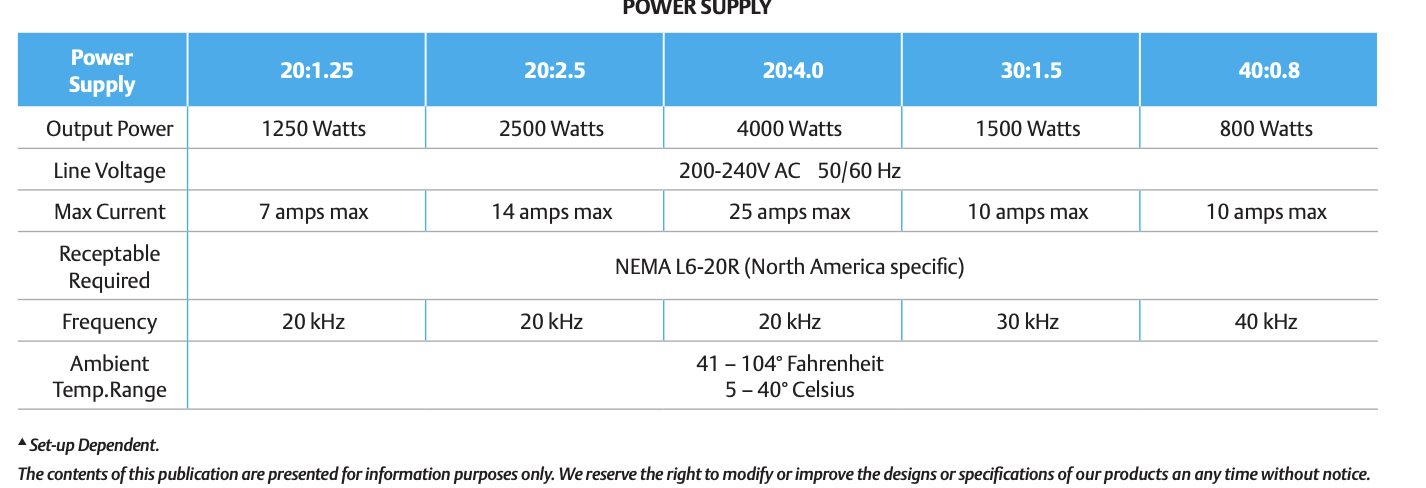

Output power800W, 1250W, 1500W, 2500W and 400kW
User interface:HMI (10" HMI touchscreen)
Weld modes:Time, Energy, Peak Power, Ground Detect, Distance (collapse & absolute), Dynamic Weld Mode

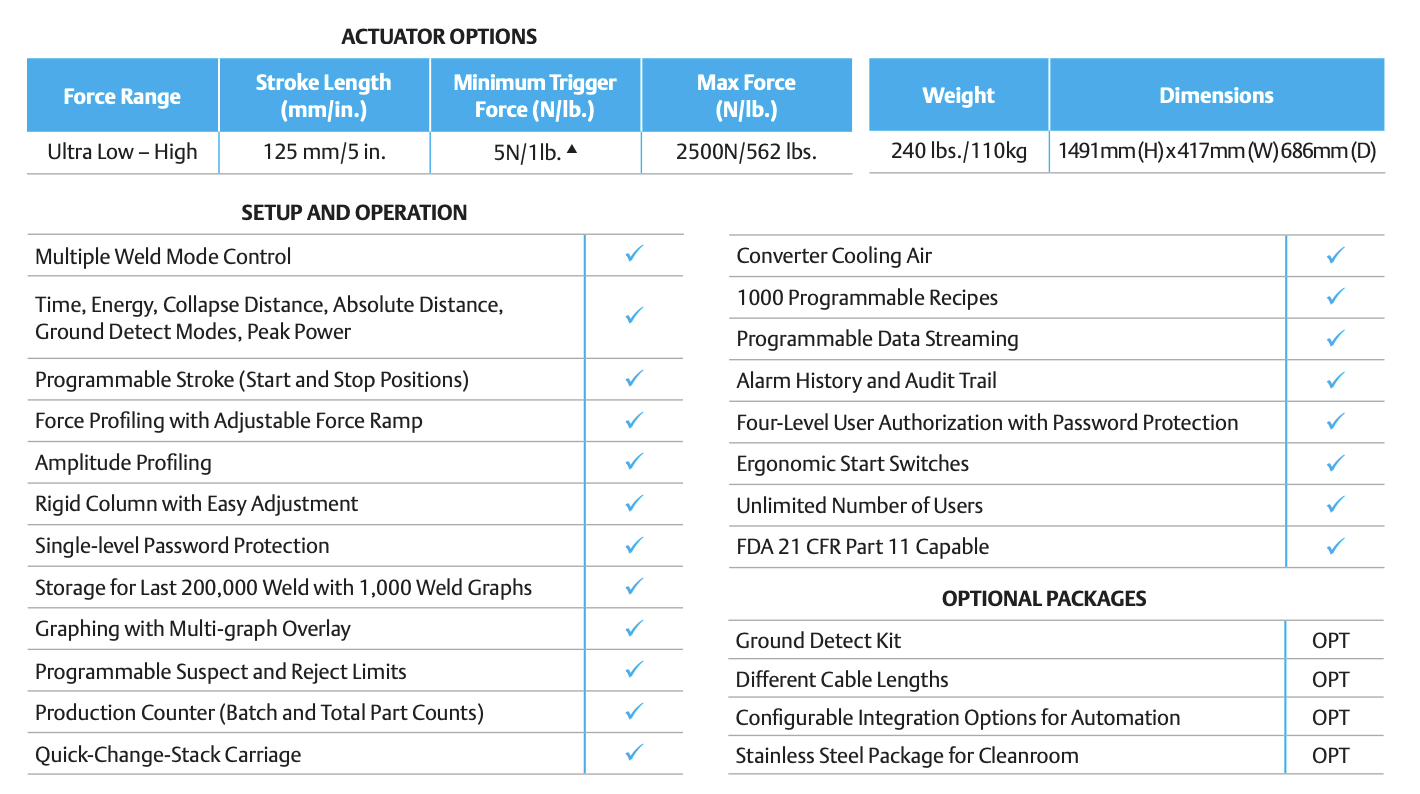

Force range:Up to 2500 Newtons
Designed to support a constant demand for the assembly of smaller and more intricate plastic components. The Branson GSX Ultrasonic Welding Platform is an advanced and intuitive flexible joining solution, designed to optimize and ensure quality welds, while helping manufacturers meet project timelines and deliver expected return on investments.
1.Electro mechanical advanced actuation system with patented amplitude profiling and force stepping technology
2.Low trigger force of 5N for delicate and miniaturized parts.
3.Closed loop actuation system can be instantaneously adjusted based on real-time feedback and provides unprecedented control and position accuracy
4.Best-in-class repeatability

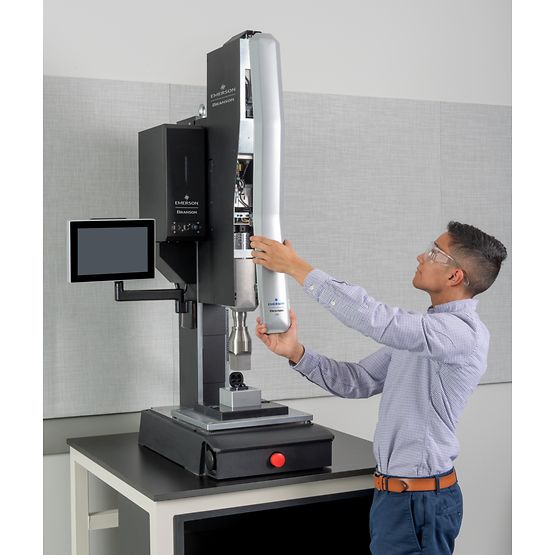

5.New quick-change process provides a faster set up time
6.New square column design improves rigidity and alignment retention
7.Faster start up time (Under 60 seconds)
8.Intuitive and easy to use HMI screen
2.Low trigger force of 5N for delicate and miniaturized parts.
3.Closed loop actuation system can be instantaneously adjusted based on real-time feedback and provides unprecedented control and position accuracy
4.Best-in-class repeatability
5.New quick-change process provides a faster set up time
6.New square column design improves rigidity and alignment retention
7.Faster start up time (Under 60 seconds)
8.Intuitive and easy to use HMI screen
9.Smart Features such as the Find Part Contact and Dynamic Mode
Machine Video← Click this link
Brand New available
