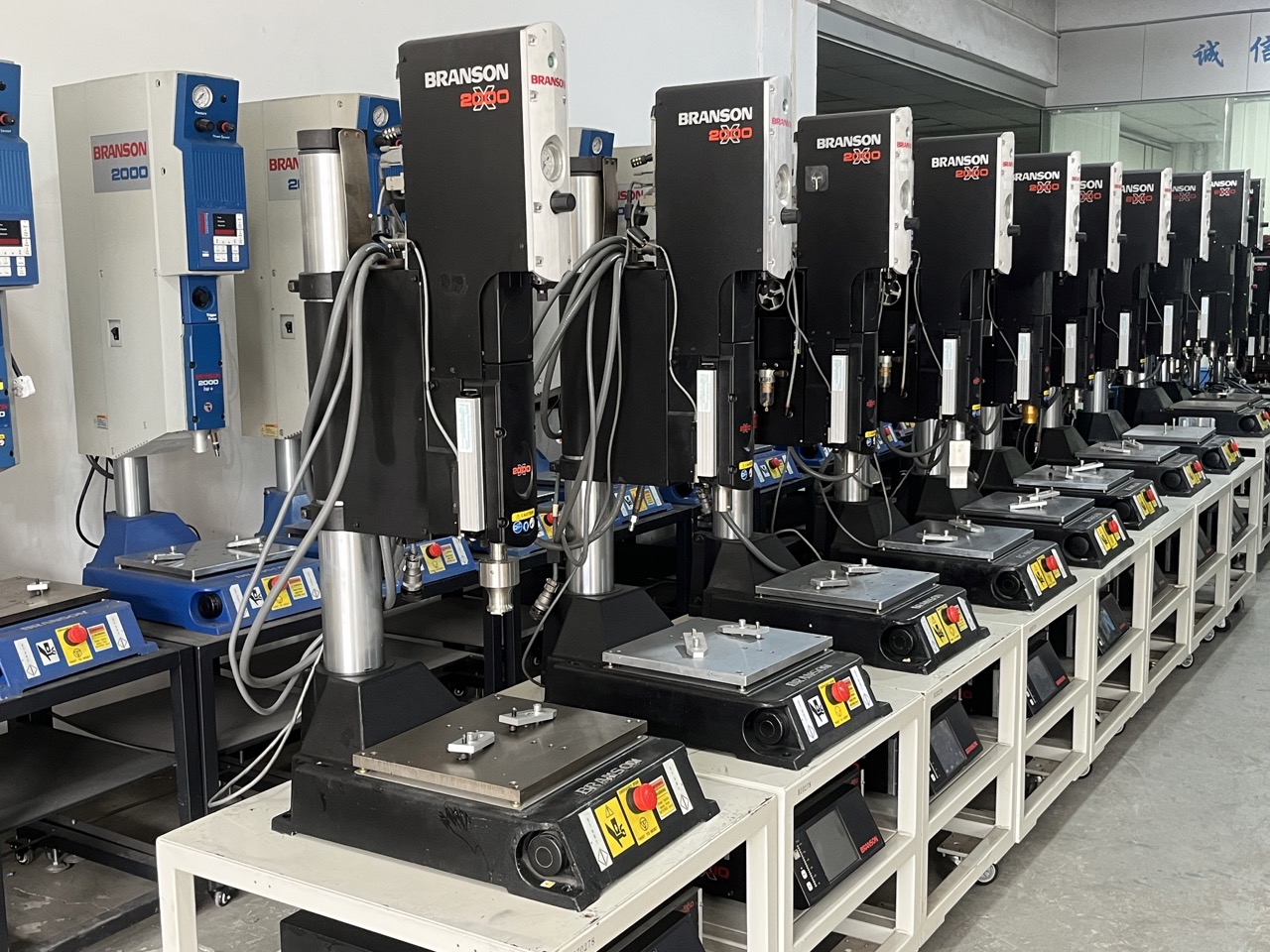

Branson 2000Xt Series Ultrasonic Welder

Brand:Branson

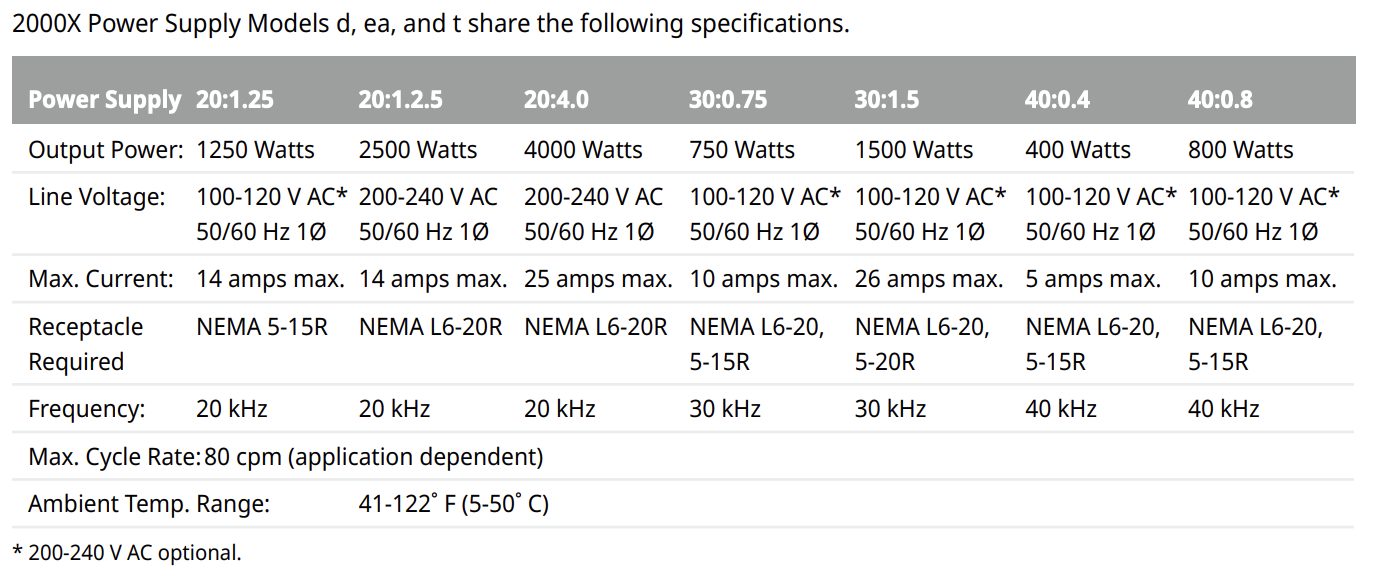

Cylinder Size1.5, 2.0, 2.5, 3.0,3.25

Data Interface:USB, Ethernet

Frequency: 15,20,30,40 kHz

Output Power:400W,750W, 800W , 1250W ,2500W ,4000w

User Interface:Touchscreen, LCD

Weld Modes:Time, Peak Power, Ground Detect

The 2000Xt welder accomodates basic welding in time mode and peak power mode. An optional ground detect kit facilitates cut-and-seal applications. Digital amplitude control is used to fine-tune critical applications, while digital autotune with memory provides fully-automatic tuning and stores horn frequency at the end of each weld.
1.Weld by time, peak power, or ground detect.
2.Digital amplitude control with patented amplitude profiling.
3.Available in 15, 20, 30 and 40 kHz.
4.True digital autotune with memory for fully-automatic tuning and storage of frequency at the end of each weld.

5.Programmable starting ramp time.





Machine Video← Click this link

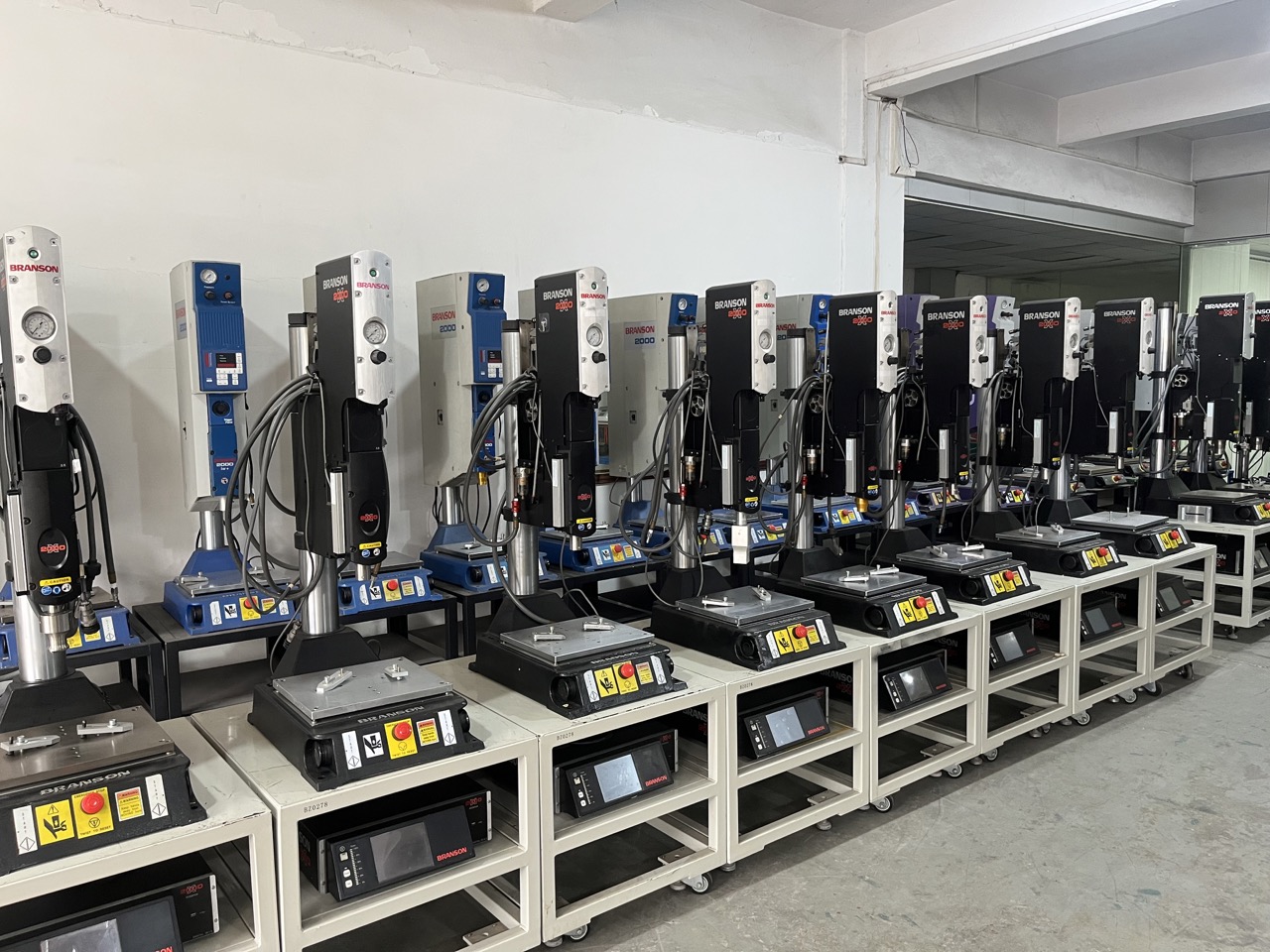

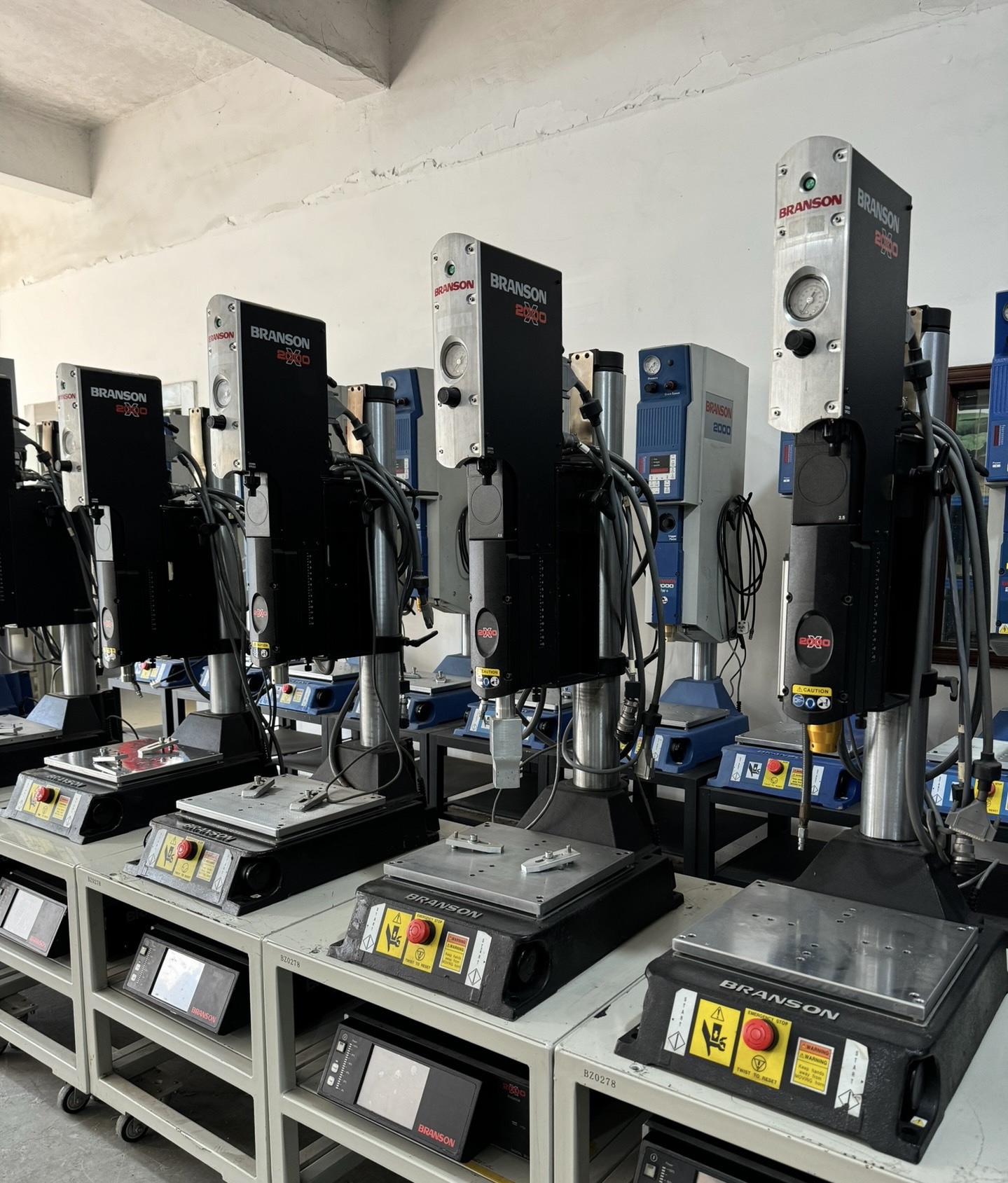

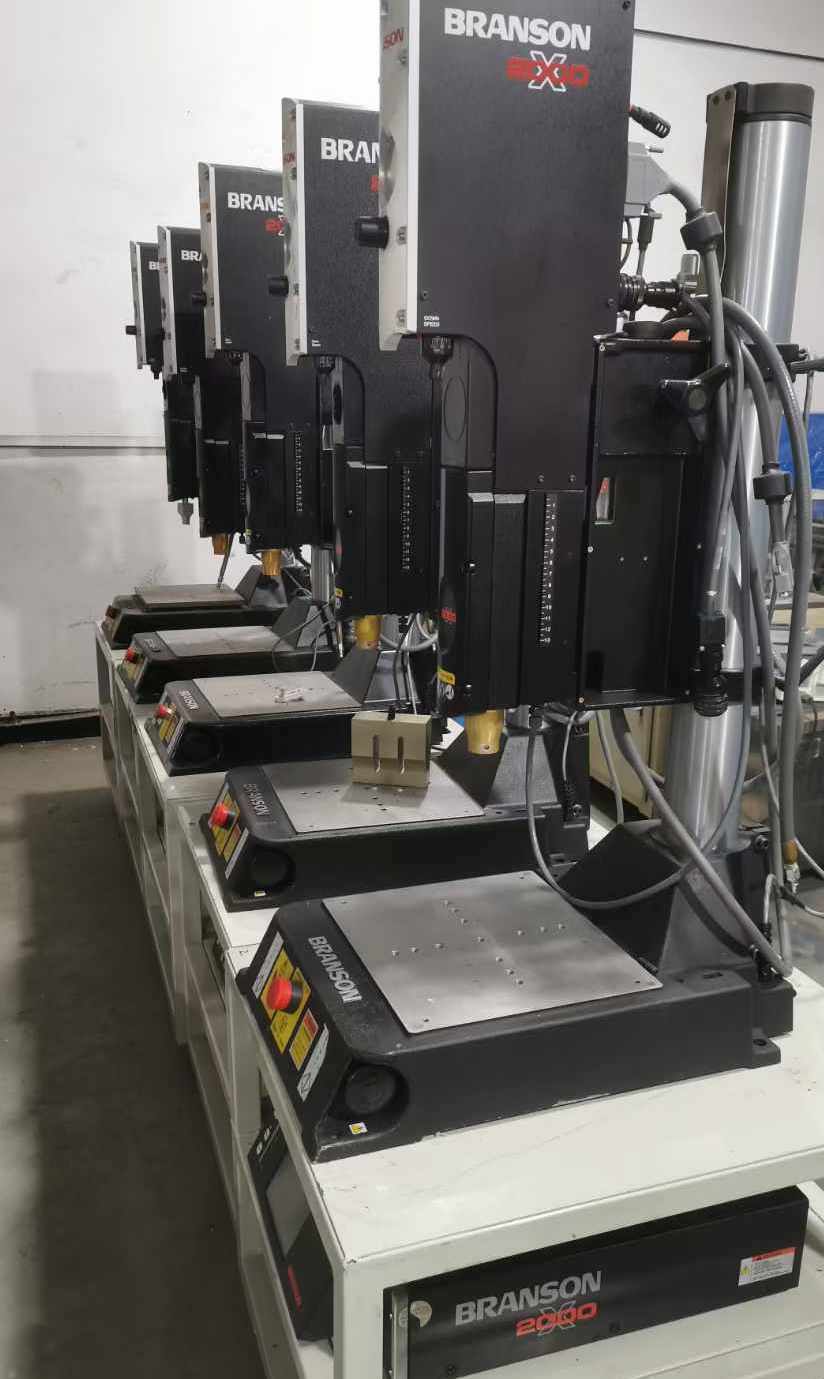

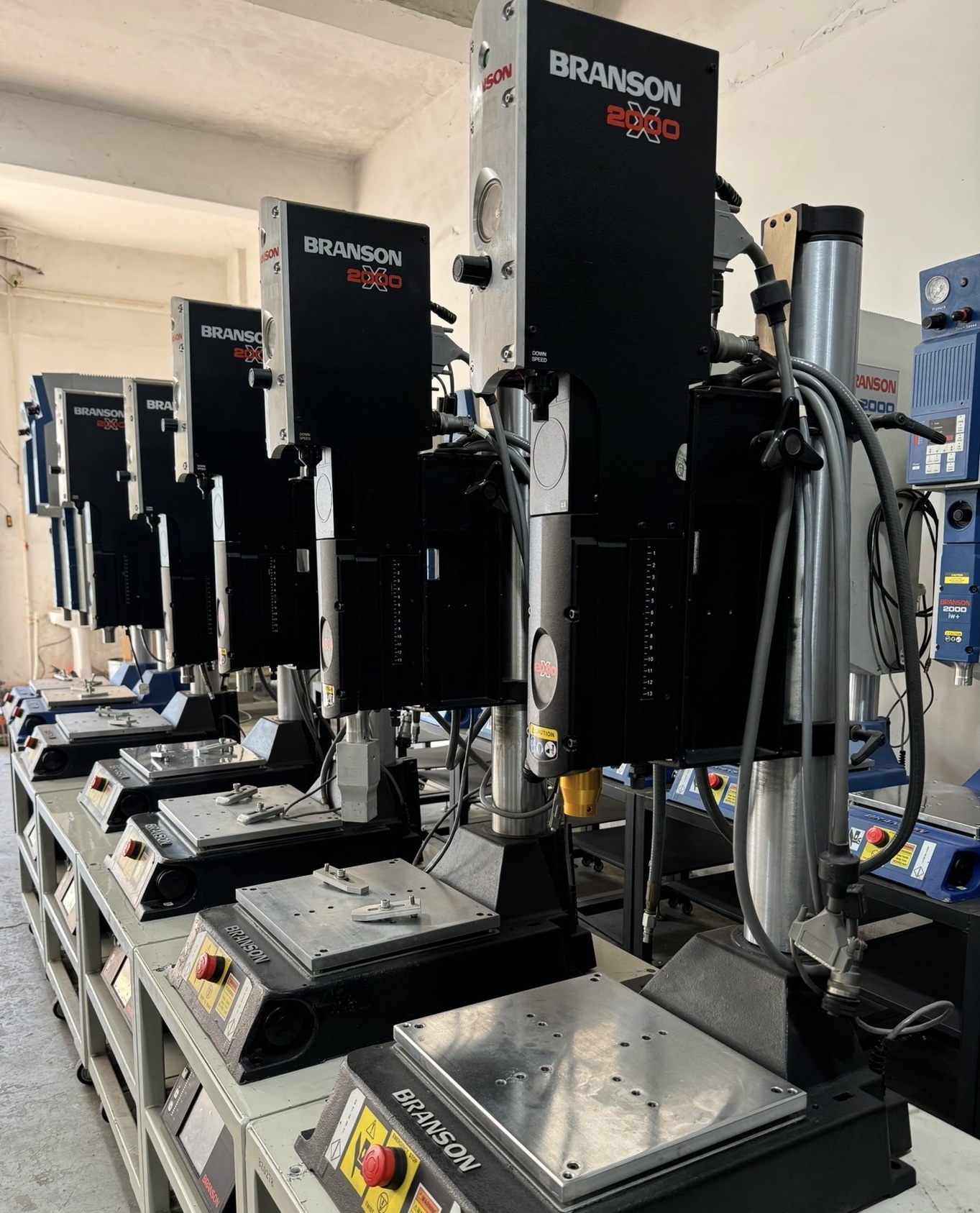

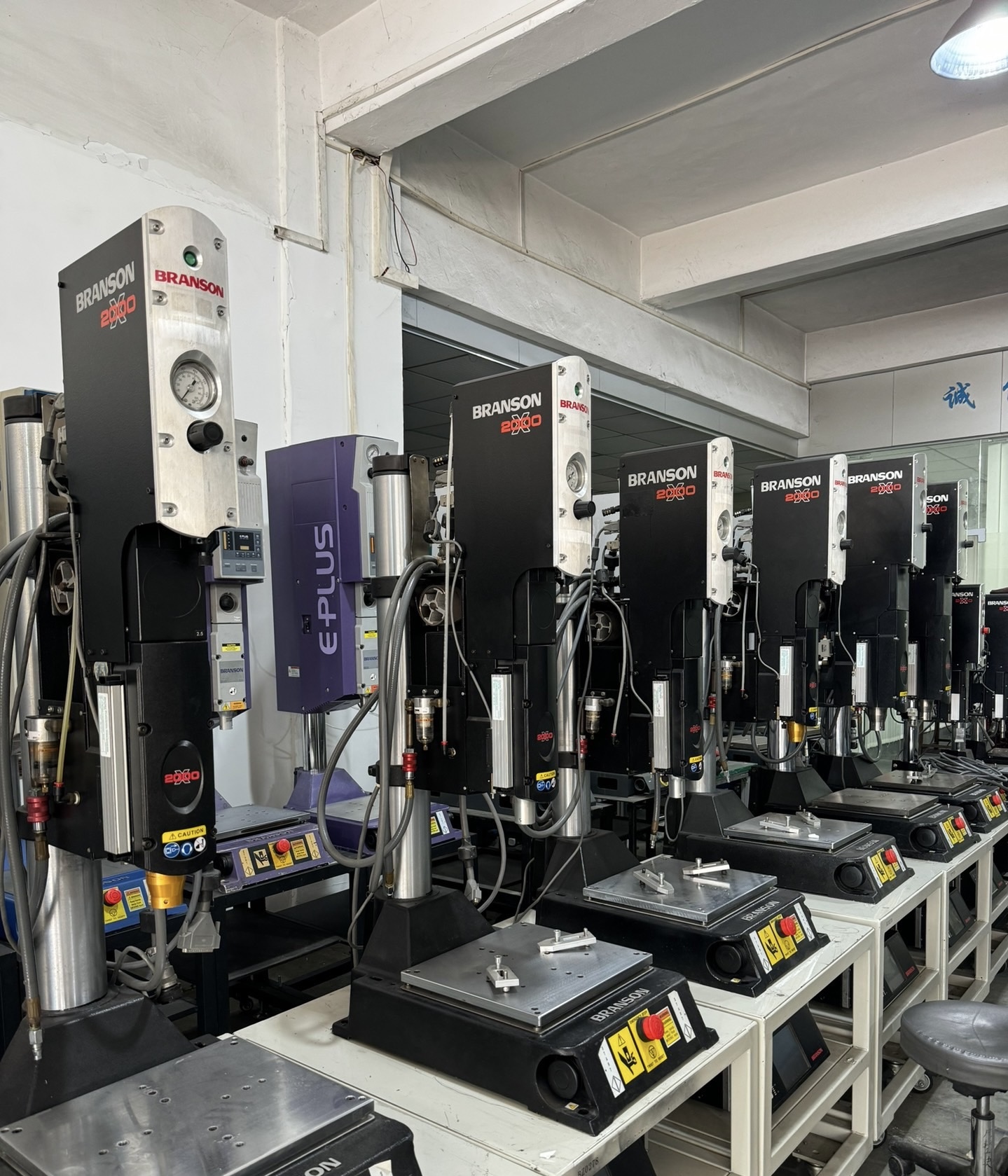

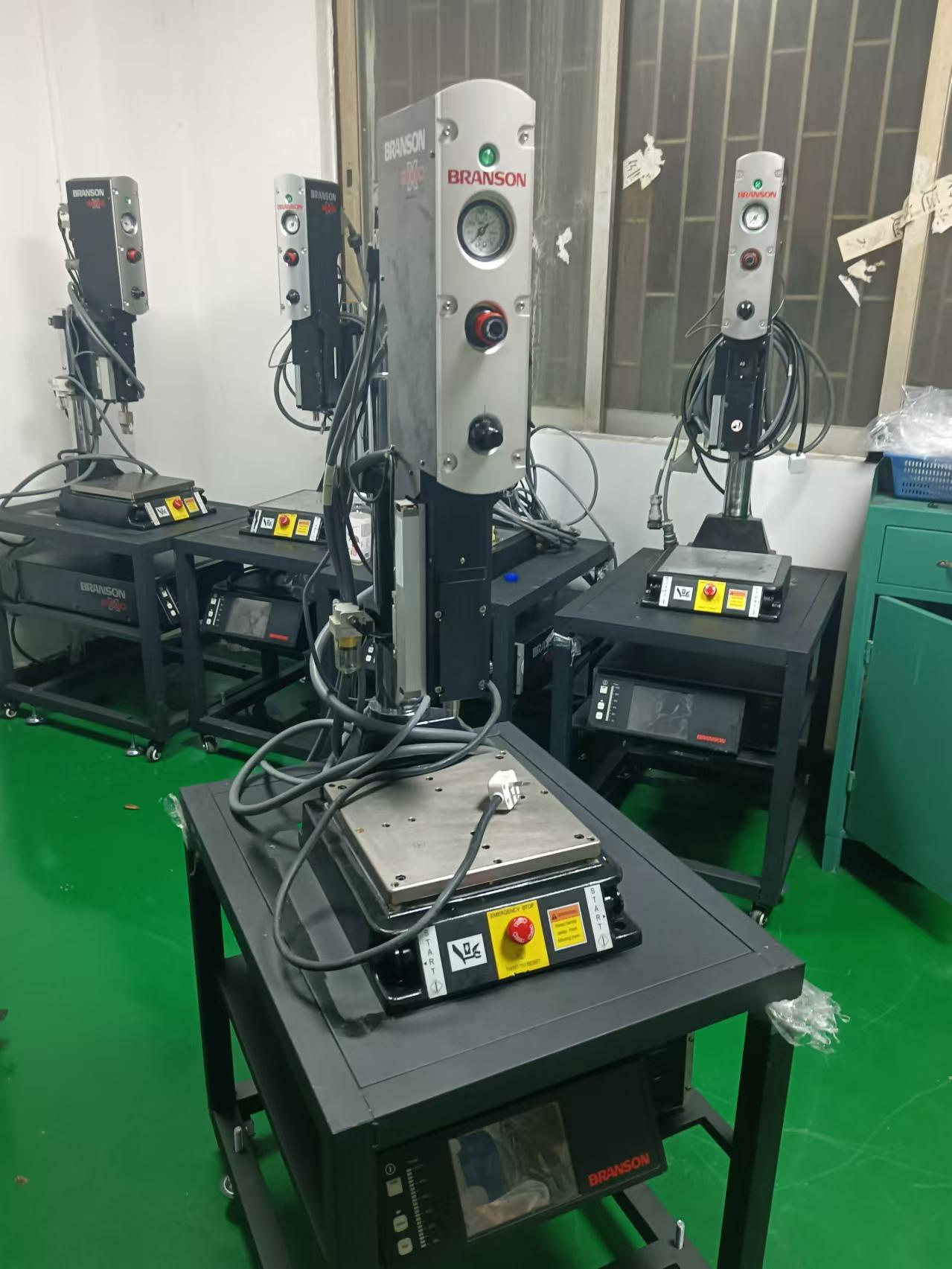

Brand New & Used / Second hand available
