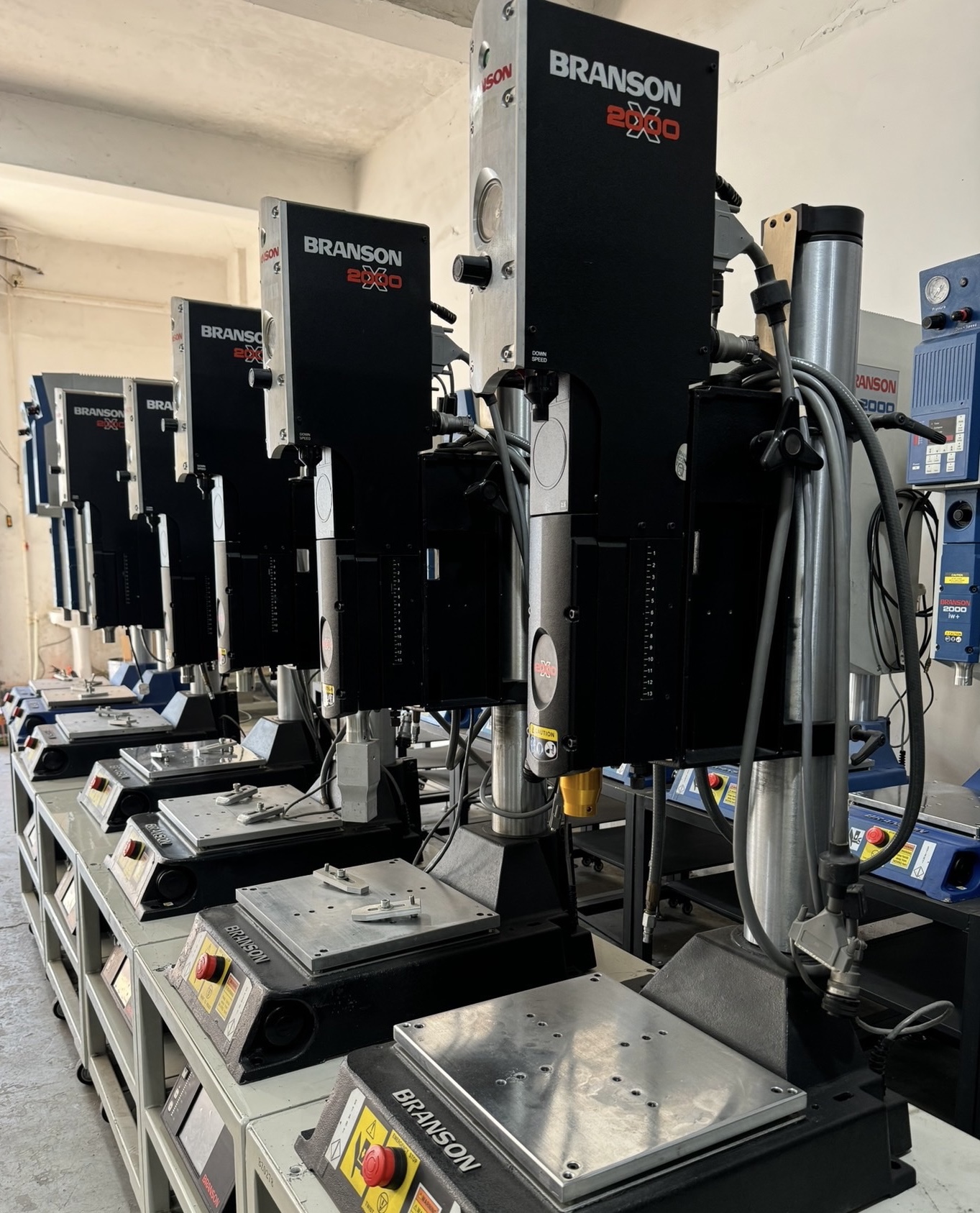

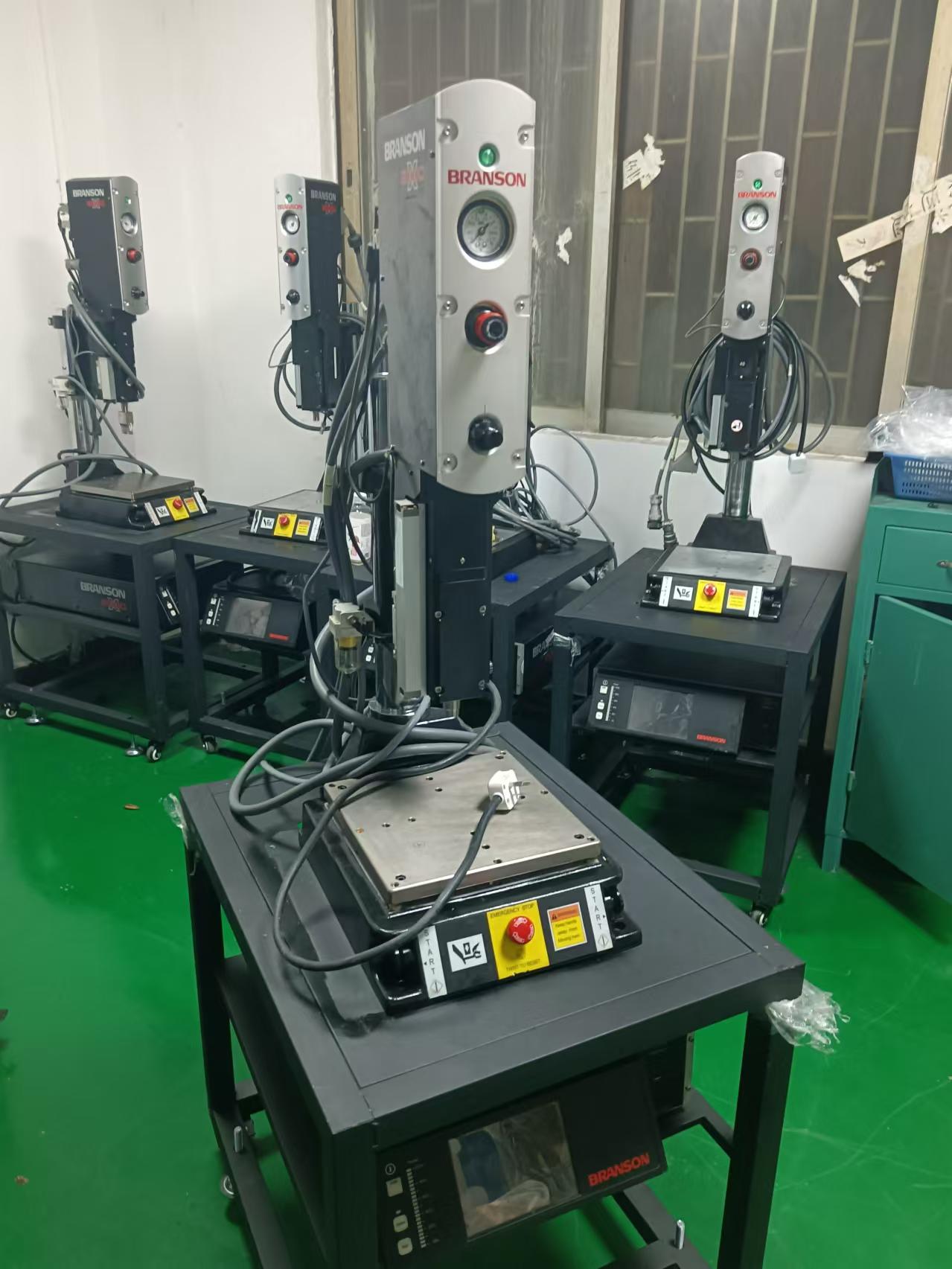

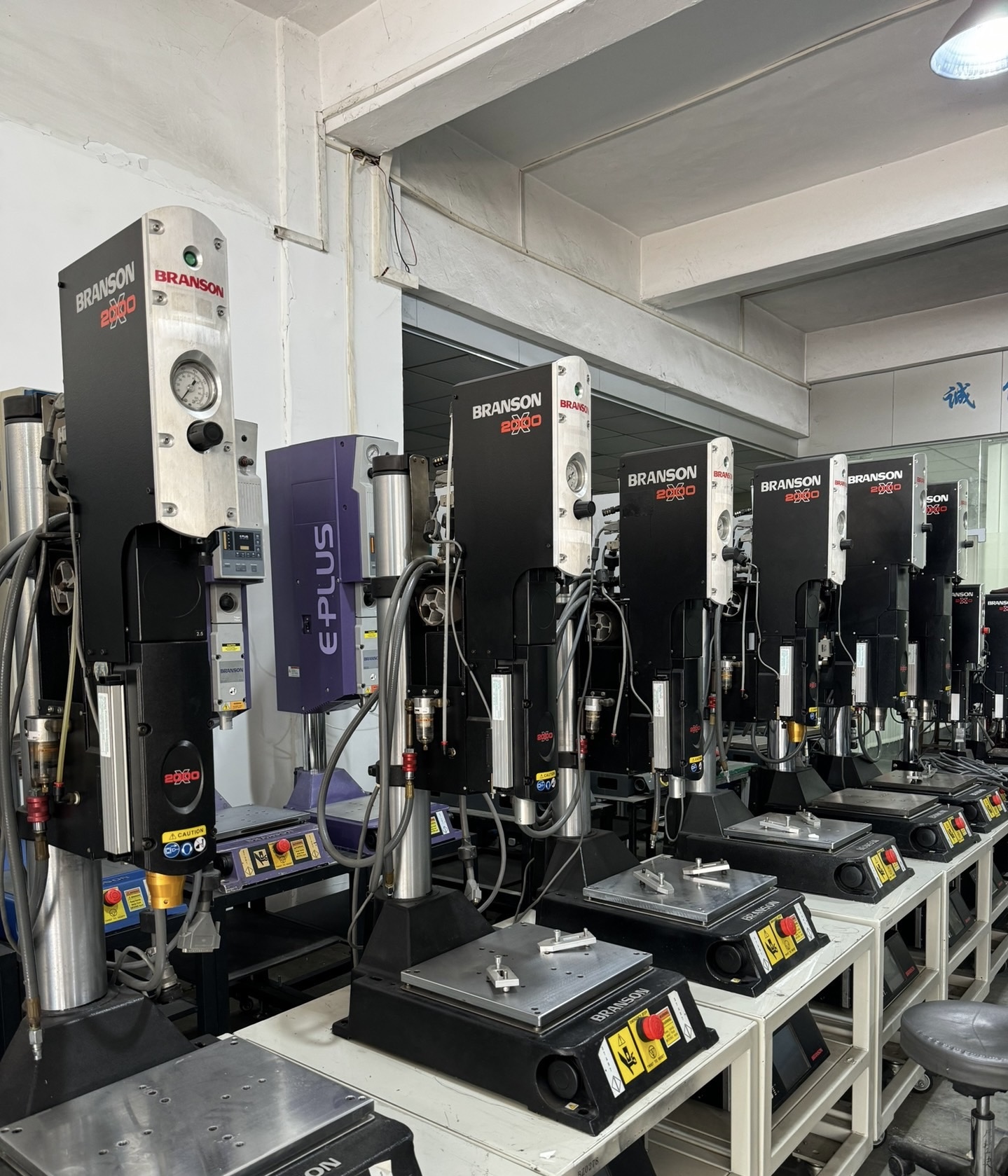

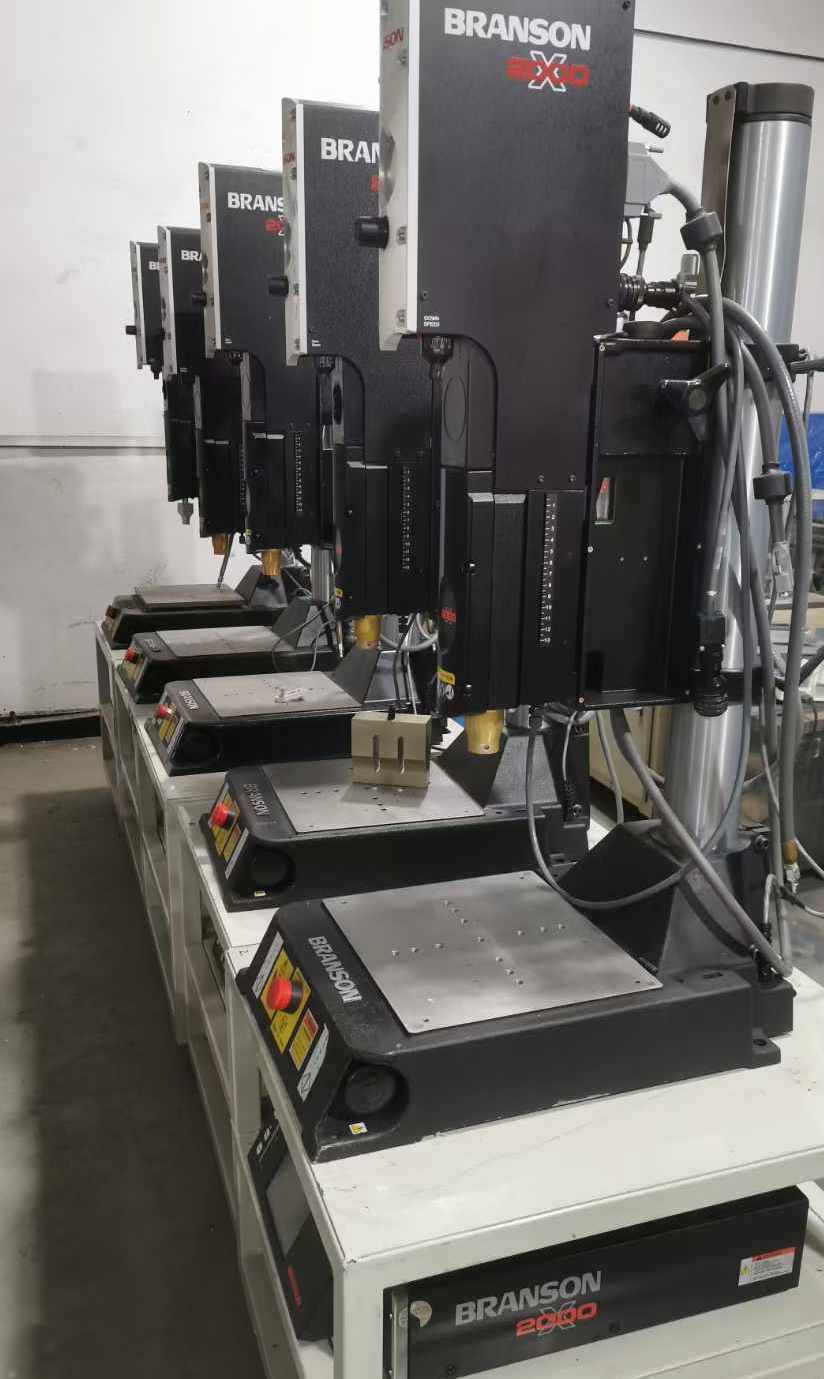

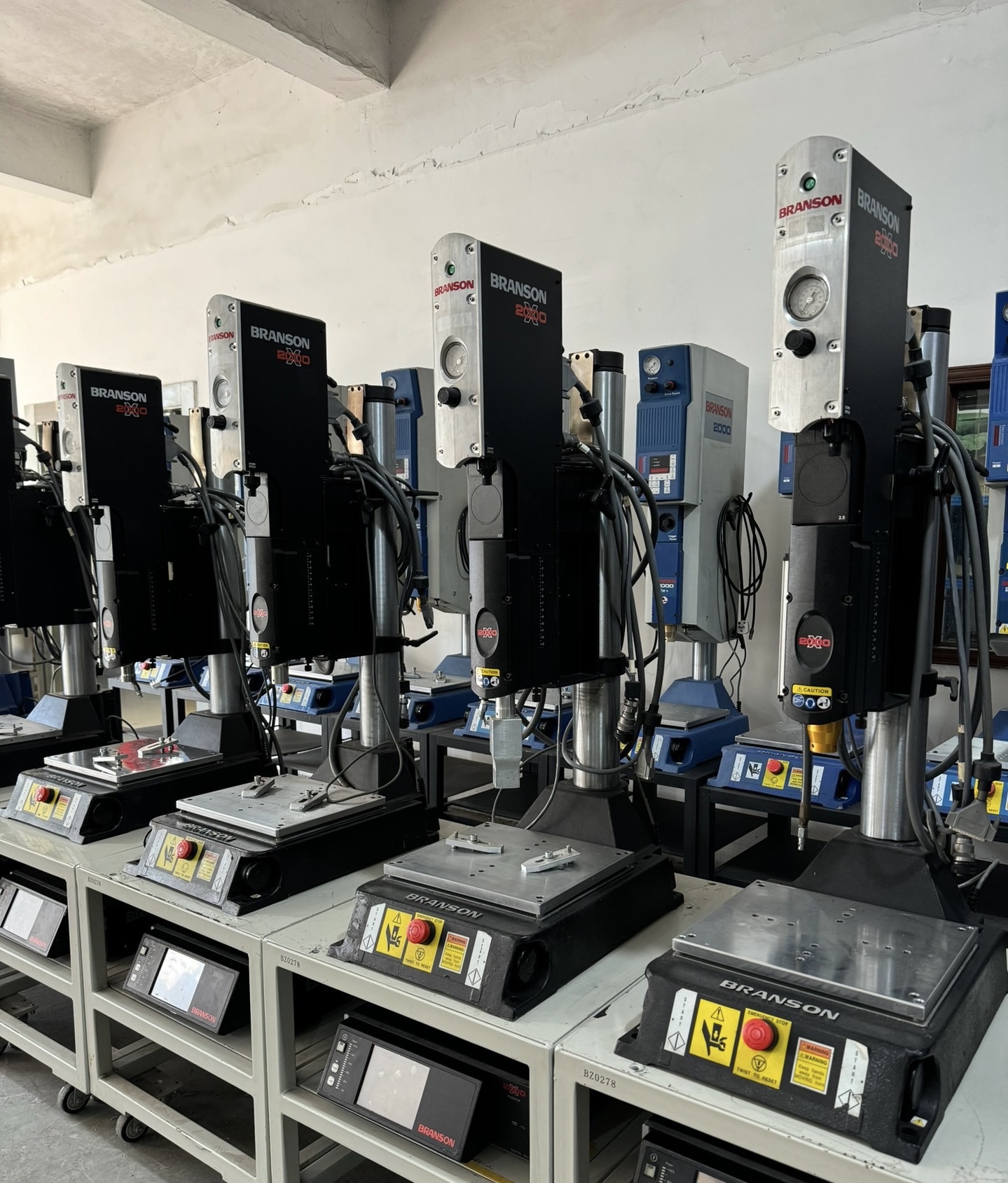

Branson 2000Xea Series Ultrasonic Welder
Brand:Branson
Control Level: ae
Cylinder Size1.5, 2.0, 2.5, 3.0,3.25
Data Interface:USB, Ethernet
Frequency: 15,20,30,40 kHz

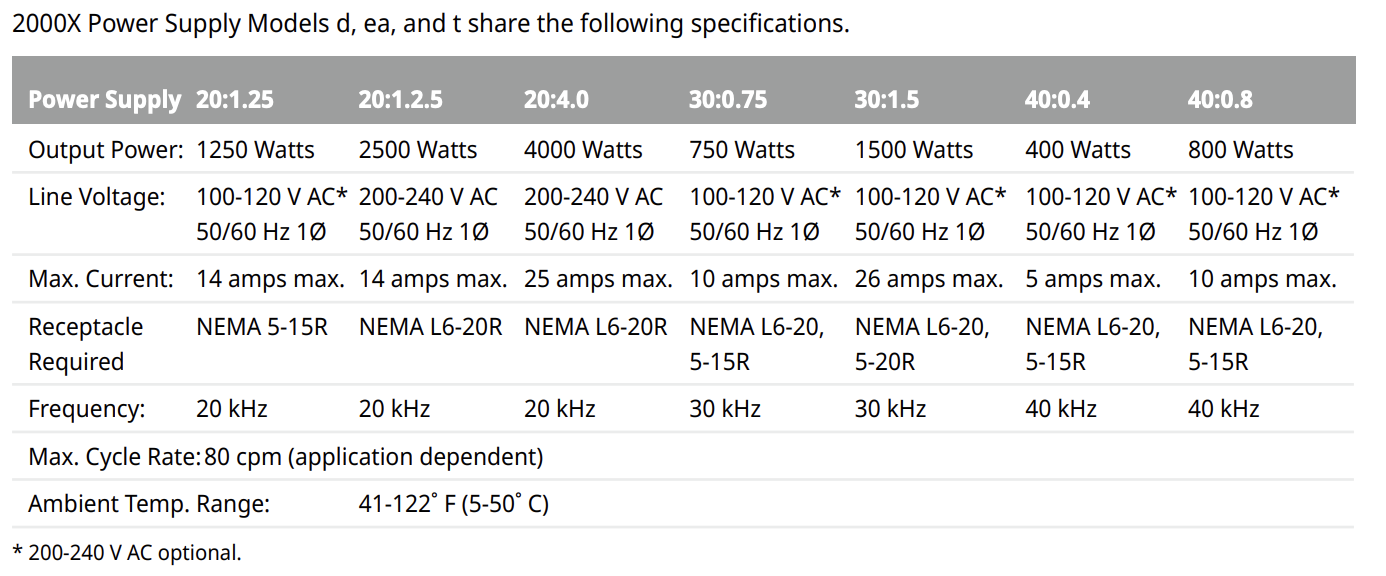

Output Power:400W,750W, 800W , 1250W ,2500W ,4000w
User Interface:Touchscreen, LCD
Weld Modes:Time, Energy, Peak Power, Ground Detect
Designed to cover a broad range of applications, the 2000Xea facilitates welding in time mode, peak power mode, and energy mode. With digital amplitude control and Branson's patented amplitude profiling, the 2000Xea enables digital optimization of the weld recipe.
1.Weld by time, energy, peak power, or ground detect.
2.Digital amplitude control with patented amplitude profiling.
3.Available in 15, 20, 30 and 40 kHz.
4.Optional VGA touch screen.
2.Digital amplitude control with patented amplitude profiling.
3.Available in 15, 20, 30 and 40 kHz.
4.Optional VGA touch screen.
5.True digital autotune with memory for fully-automatic tuning and storage of frequency at the end of each weld.
6.Programmable starting ramp time.
Machine Video← Click this link
Brand New & Used / Second hand available
