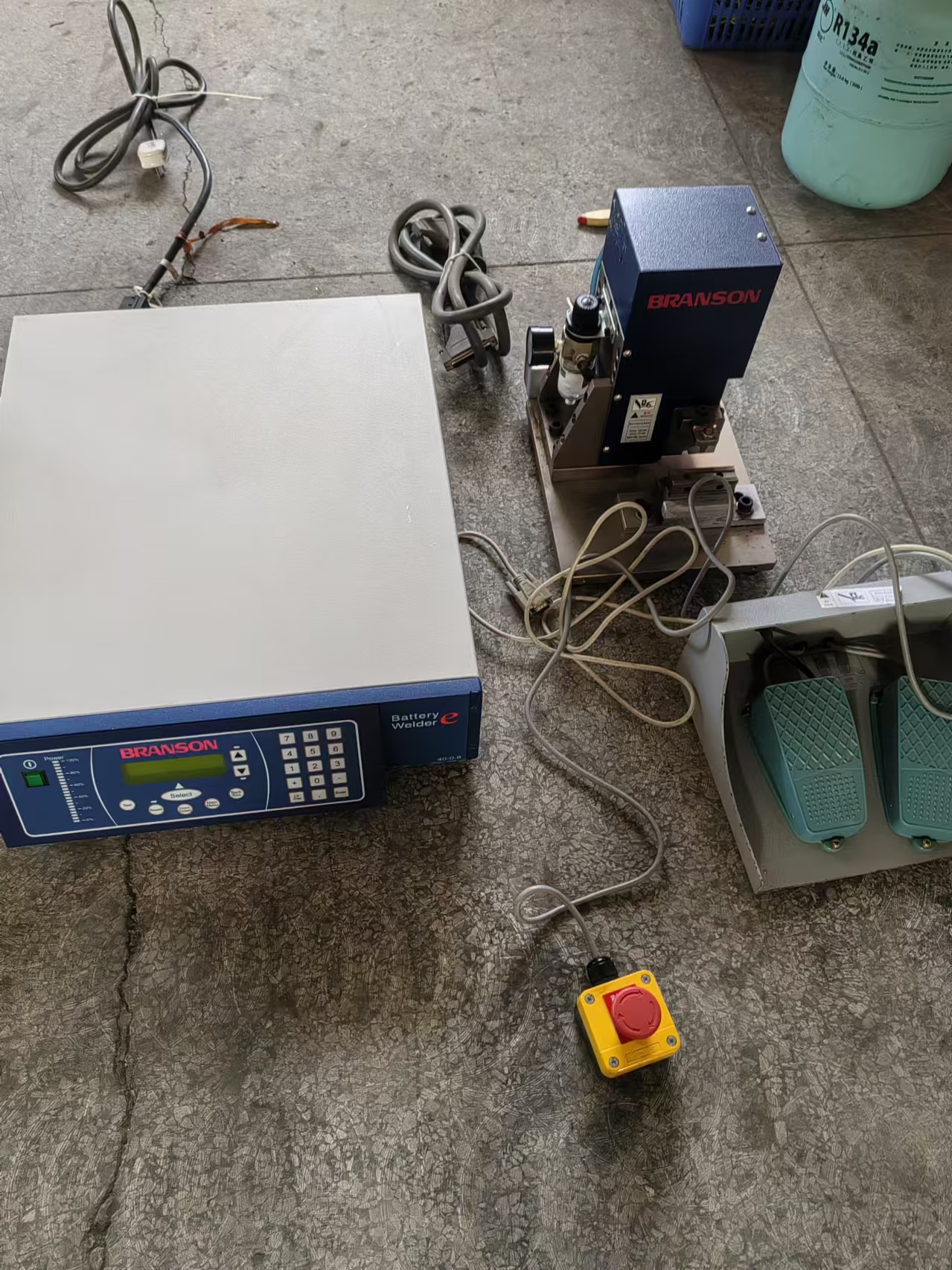

Branson 40MA Ultrasonic Metal Welder

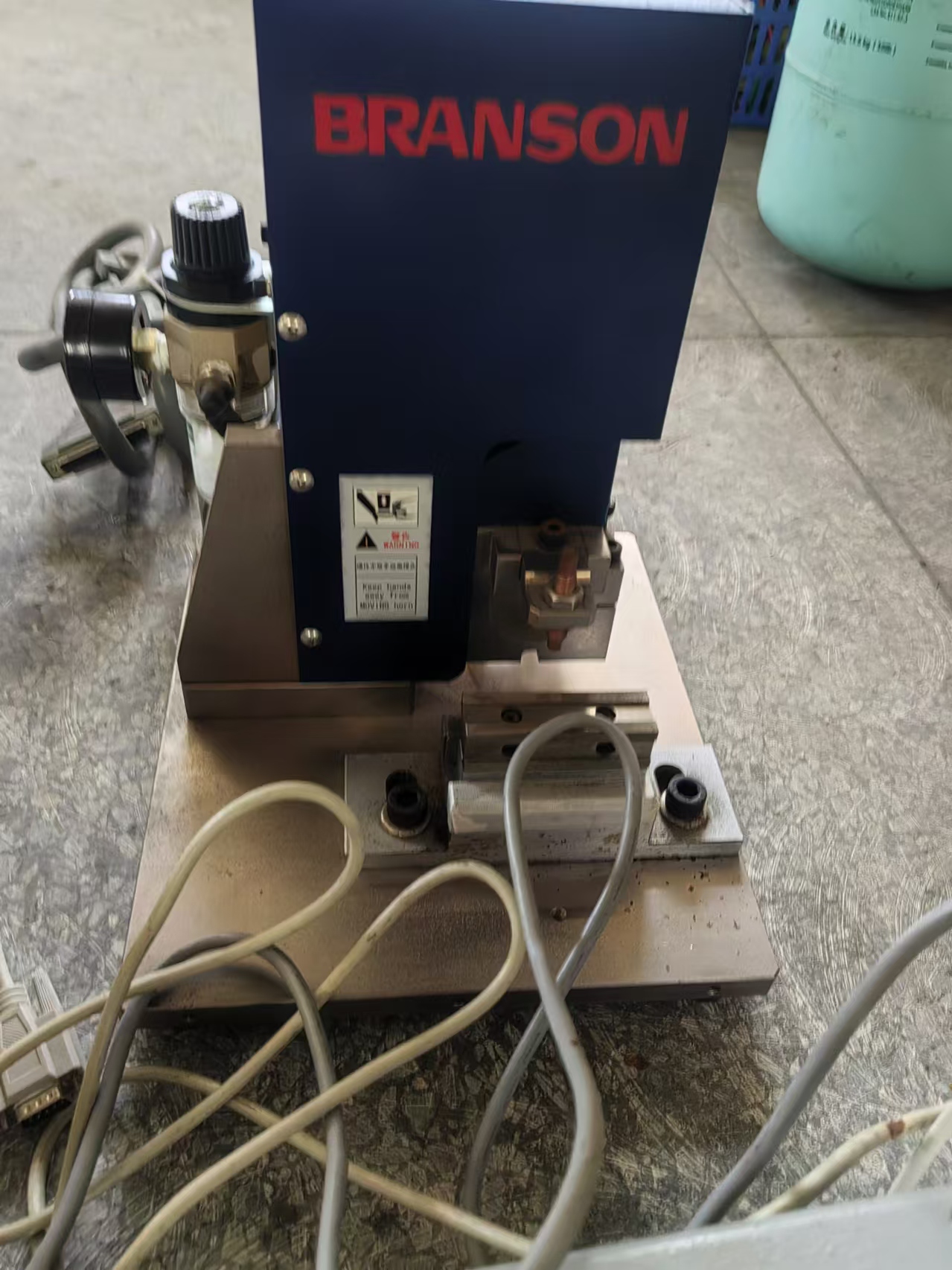

Actuator dimensions: 135 W x 120 D x 265 H (mm)
Base Dimensions:240 W x 310 D x 25 H (mm)
Stand weight:25 kg (including base)
Cylinder bore diameter:50 mm
Air Max.:0.7 MPa
Maximum effective stroke:20 mm

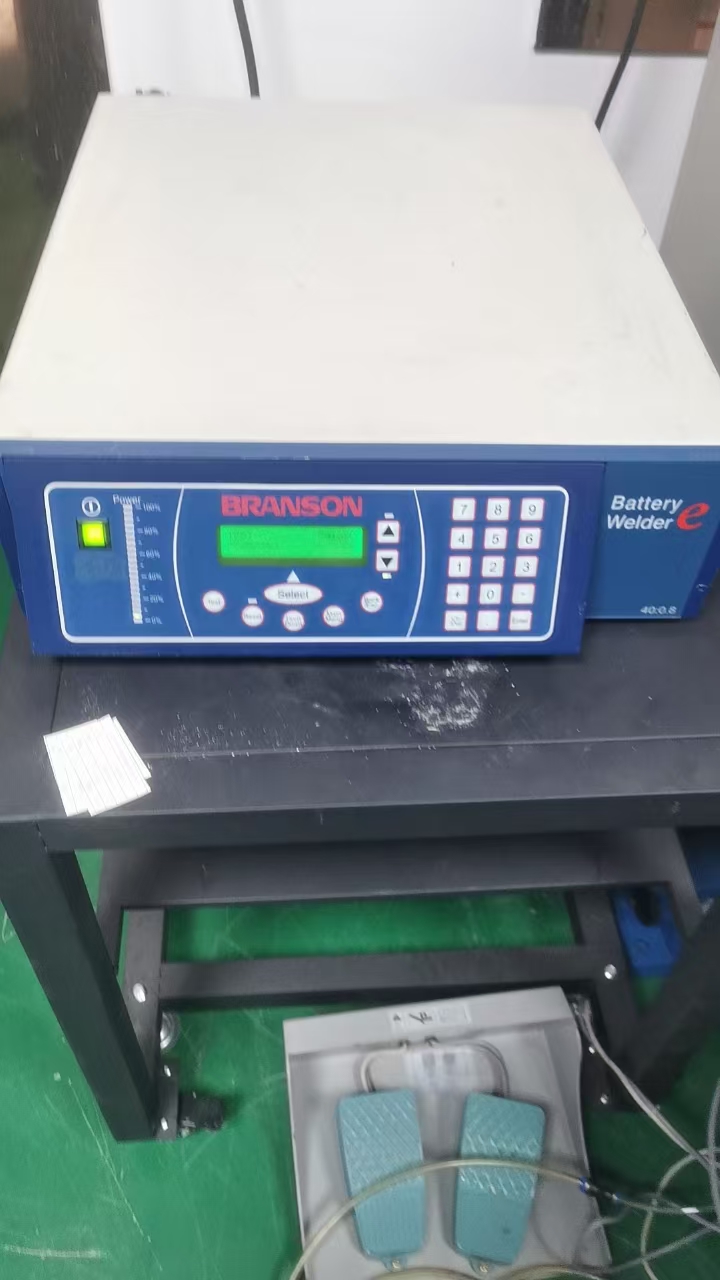

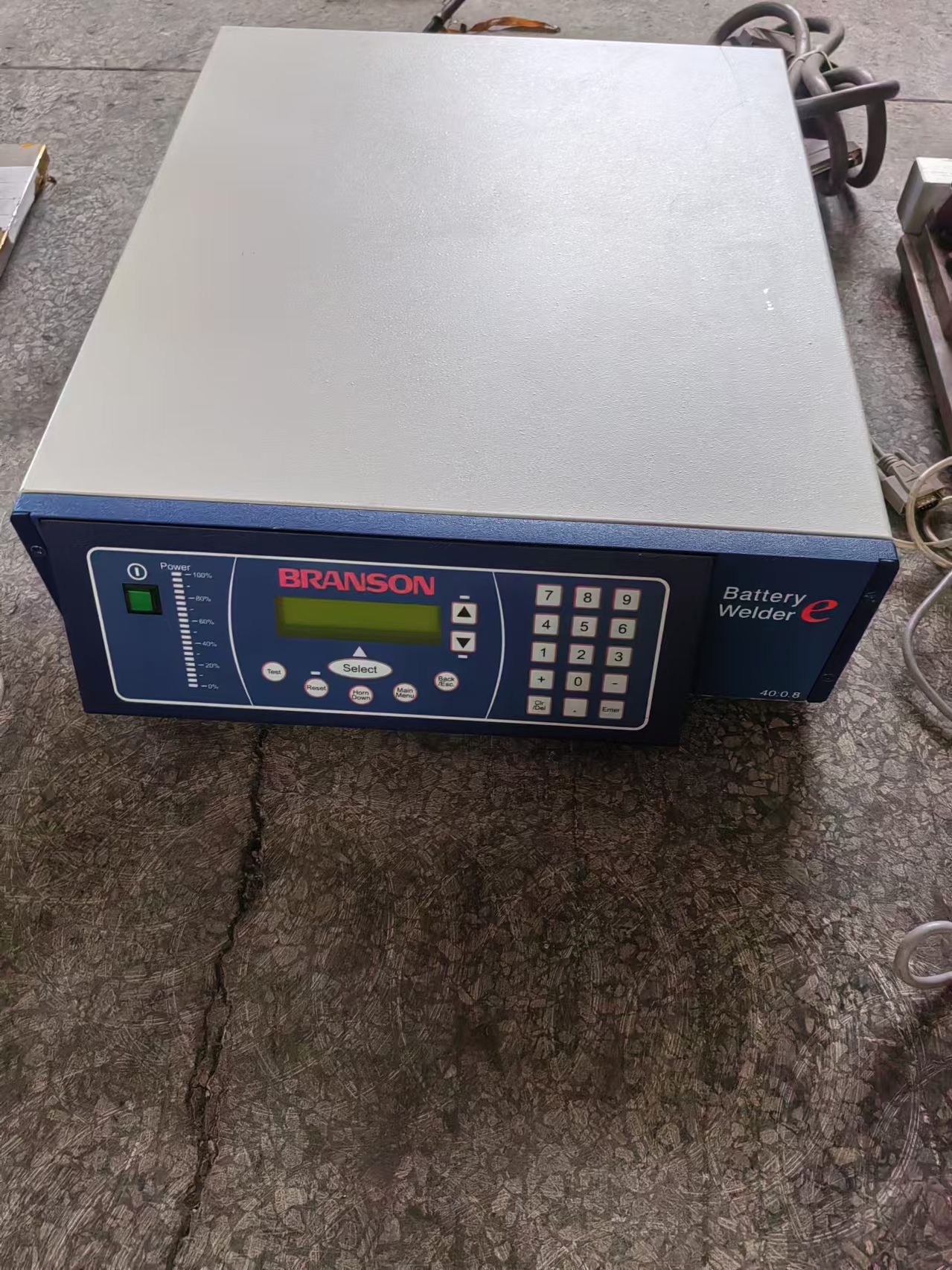

Supported power supply:2000Xt/Xea
Branson's 40MA is a compact type ultrasonic metal spot welder. It is equipped with a "nodal support mechanism" that maintains parallelism of the anvil during joining by supporting the nodes of the horn with a special vibrating body block to maintain stable joining. The actuator is also available as a stand-alone unit for installation on automatic machines.
1.Small-size ultrasonic metal welder that enables sensitive, less-damaged welding.
2.Nodal Support Mechanism - A nodal support mechanism reduces bending of welded parts by supporting the horn node with a special vibrating body block to maintain parallelism of the anvil.
3.Polar mount method - The Polar mount method provides high amplitude bonding. This enables metal welding with higher vibration efficiency.
4.Two-way work path line - Two work path lines allow for easy integration into automated machines.
5.Various welding modes - Various welding controls such as time, energy, peak power, etc.
6.Digital amplitude control - Amplitude can be set within a fine range of 10 % to 100 %.
7.Amplitude stepping - Amplitude is changed during welding according to various conditions such as time.
2.Nodal Support Mechanism - A nodal support mechanism reduces bending of welded parts by supporting the horn node with a special vibrating body block to maintain parallelism of the anvil.
3.Polar mount method - The Polar mount method provides high amplitude bonding. This enables metal welding with higher vibration efficiency.
4.Two-way work path line - Two work path lines allow for easy integration into automated machines.
5.Various welding modes - Various welding controls such as time, energy, peak power, etc.
6.Digital amplitude control - Amplitude can be set within a fine range of 10 % to 100 %.
7.Amplitude stepping - Amplitude is changed during welding according to various conditions such as time.
8.Alarm message - alarm notification in case of no set result.
Machine Video← Click this link
Brand New & Used / Second hand available
