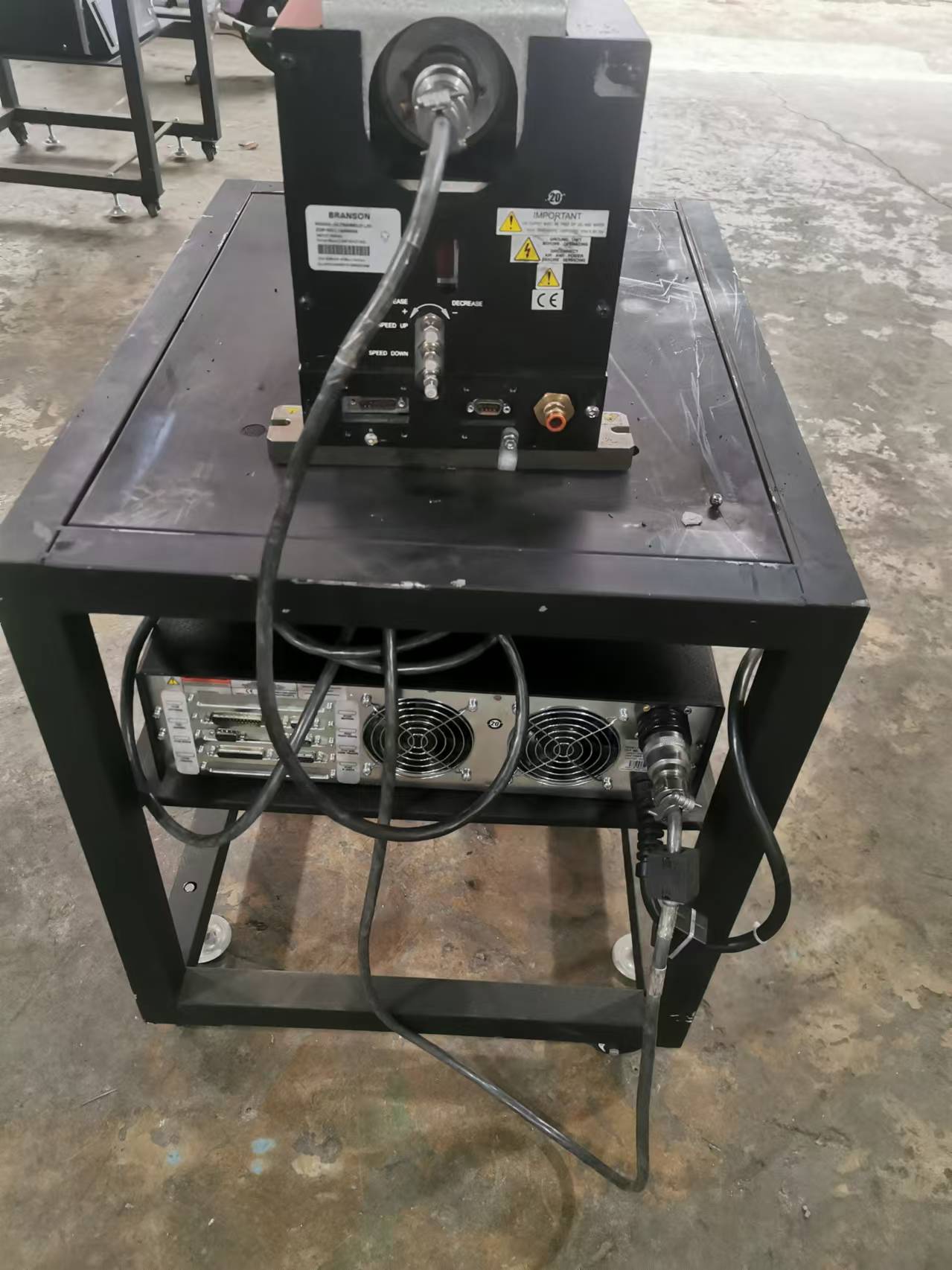

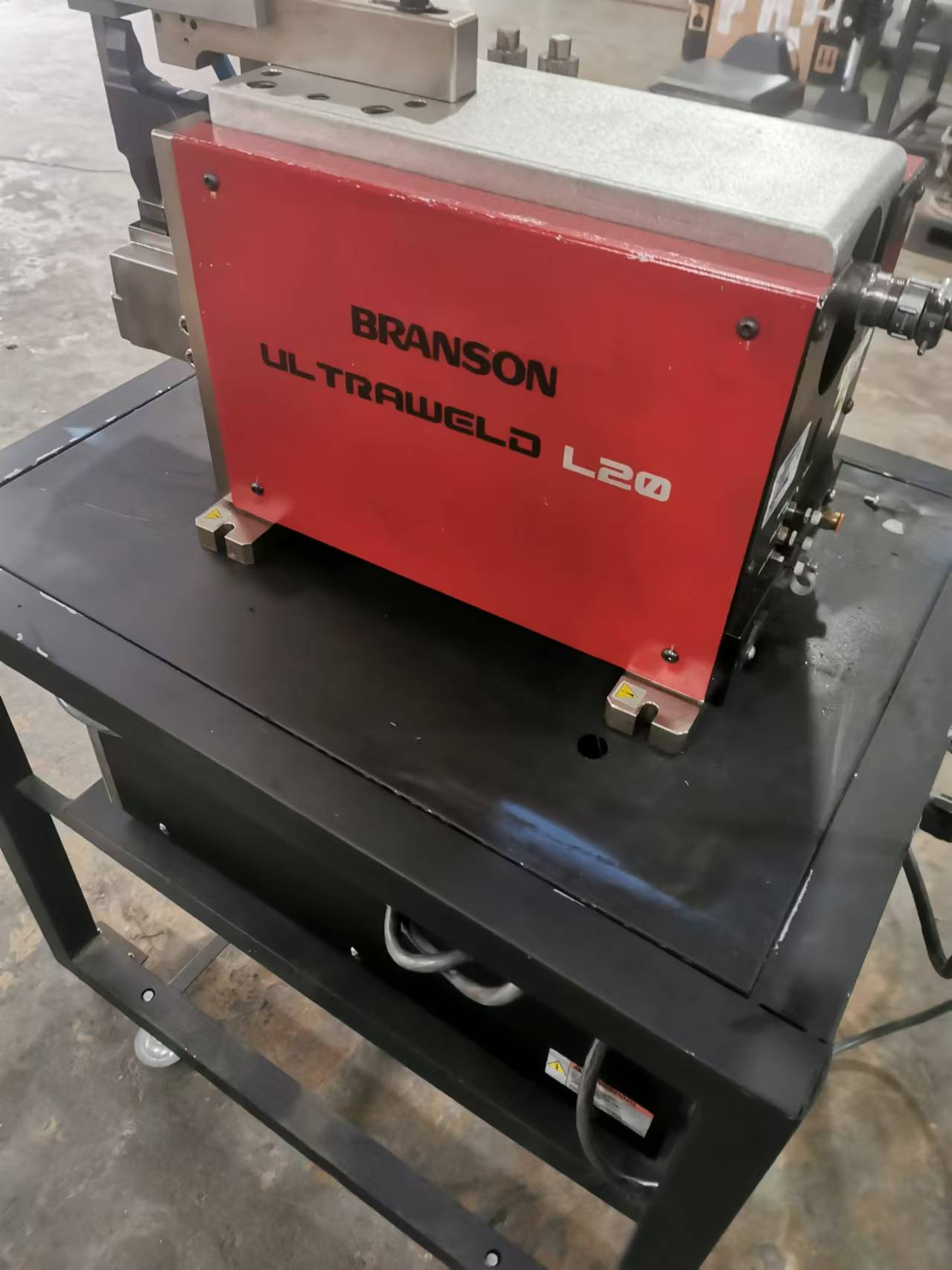

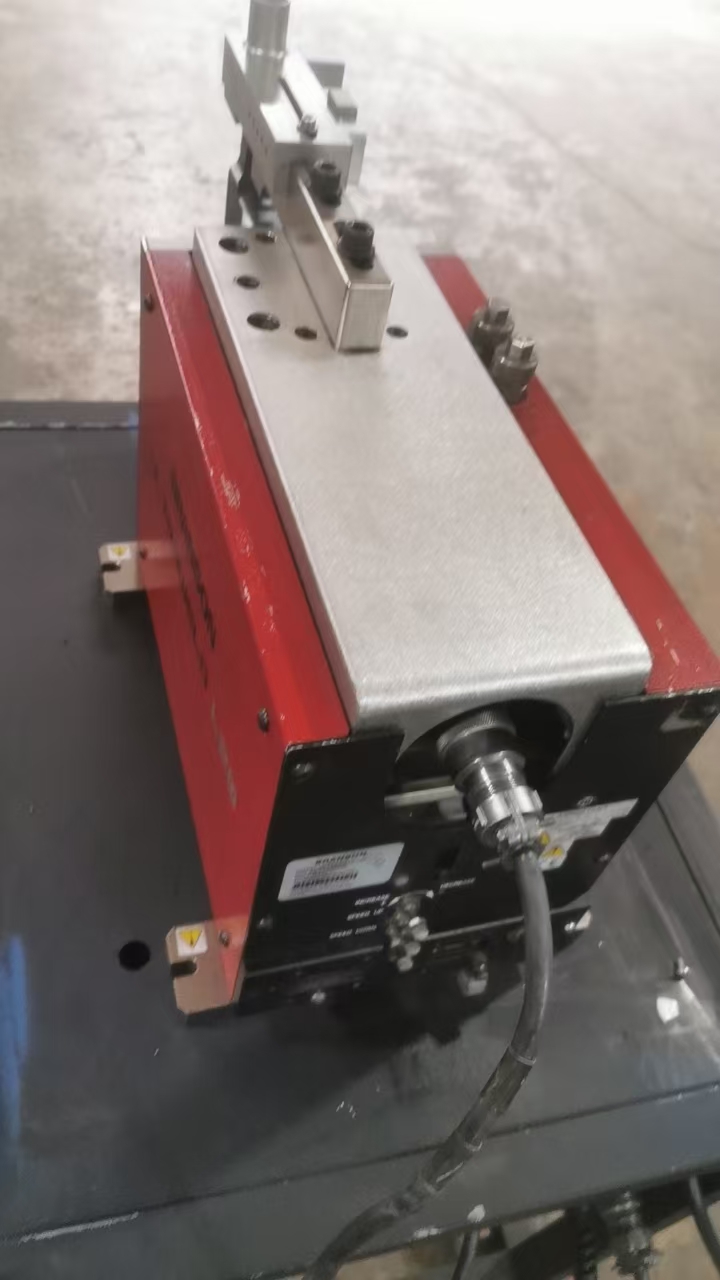

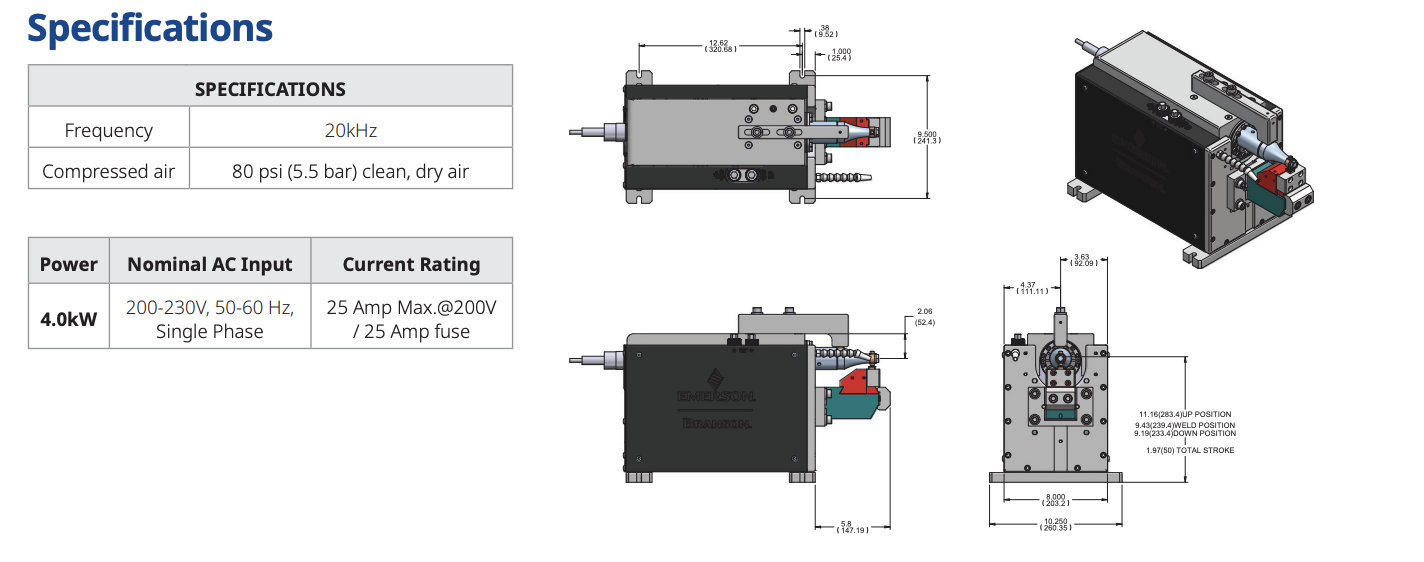

Branson GMX-L20A Spot Welder
Actuation:Pneumatic
Cooling System:Air
Data Interface:USB, Ethernet
Frequency:20kHz
Input Power:200-230V, 50/60 Hz (for 4000W); 260-528V, 50/60Hz, Three Phase (for 5500W)
Output Power:4000W, 5500W
Overall Dimensions:283mm x 260mm x 468mm (H x W x L) (varies with different fixture)
Pneumatics Type:5.5 bar (80 psi) clean, dry air
Special Feature:Password protection

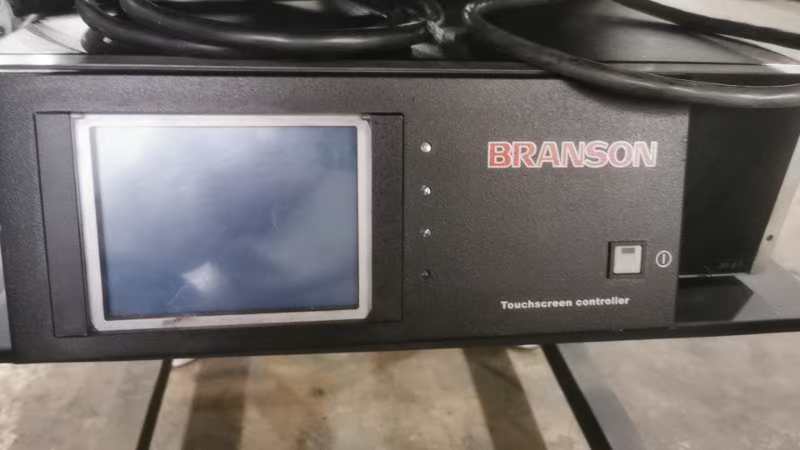

User Interface:Touchscreen
Weld Modes:Time, Energy

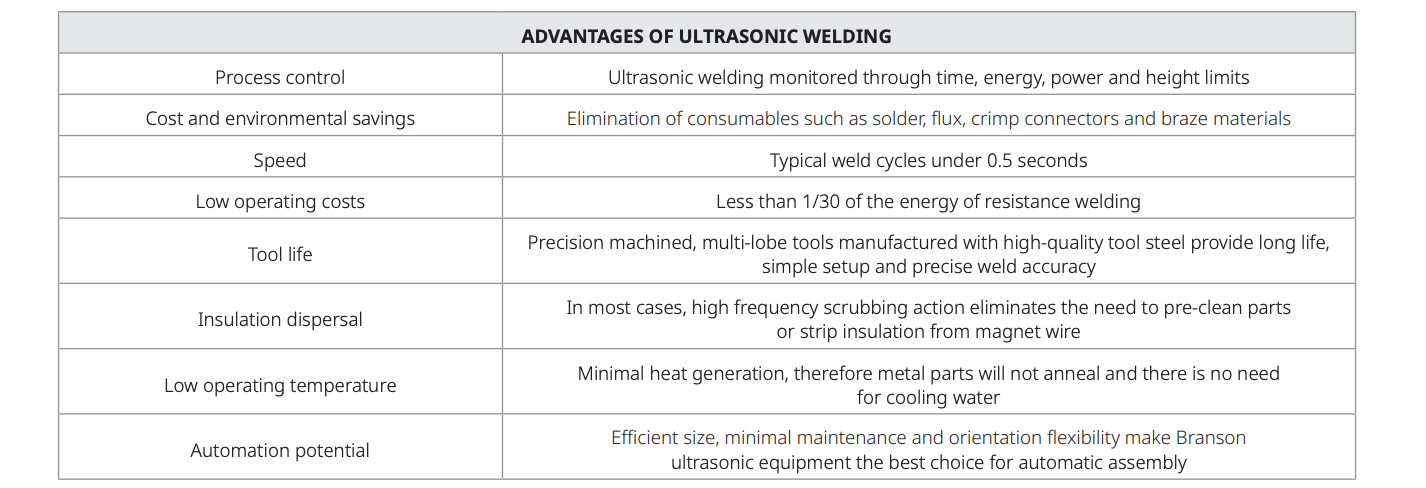

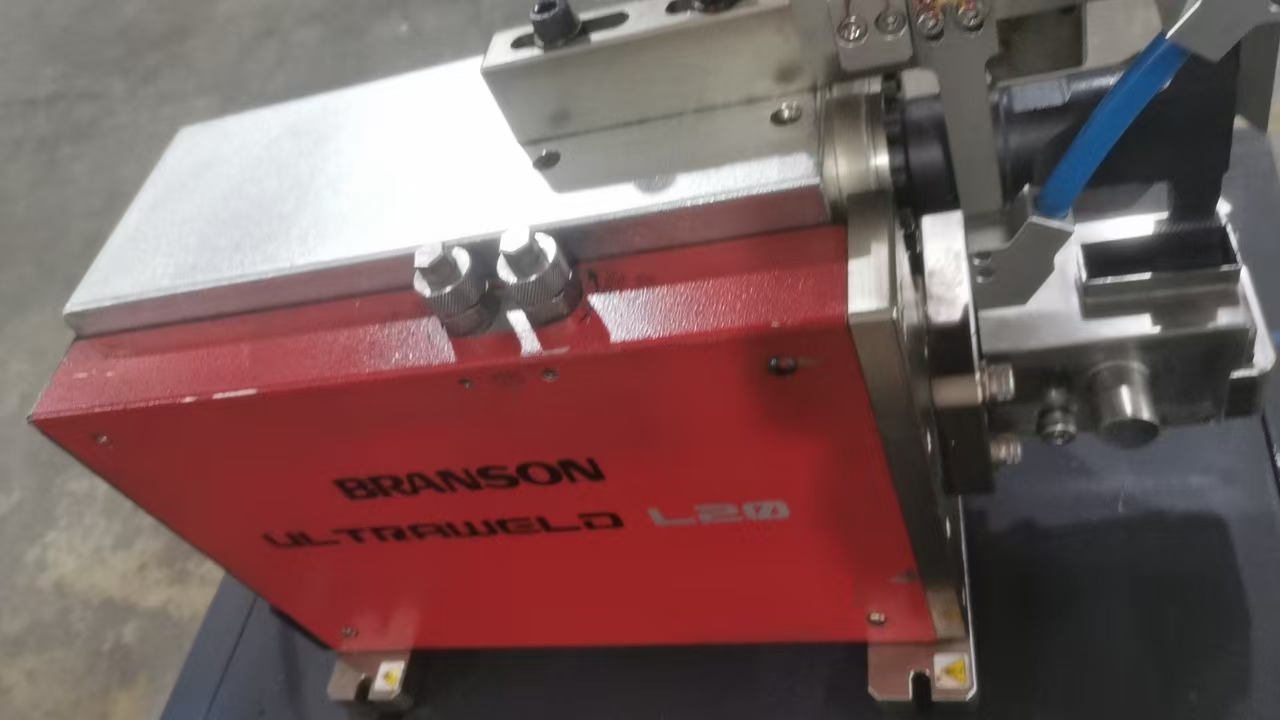

Branson™ GMX-L20A Ultrasonic Metal Welder is designed and built to assure you the highest degree of reliability and weld quality. Ultrasonic metal welding provides our customers with a superior solution, superior performance, improved throughput and reduced maintenance.

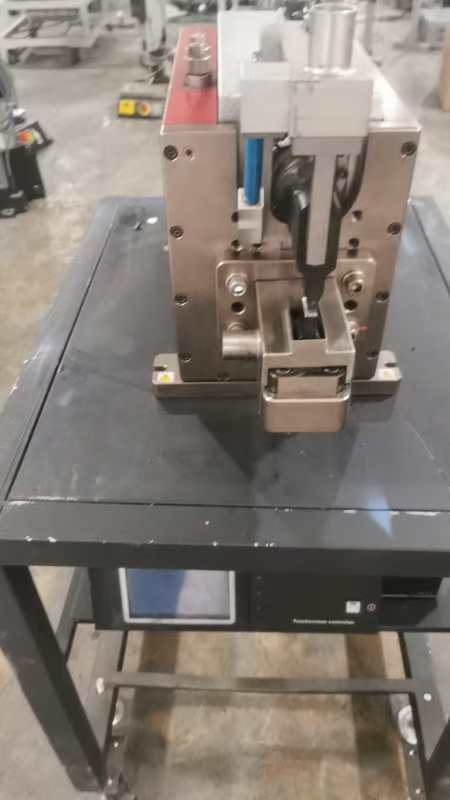

1.Precision roller bearing slide assures smooth operation and extreme accuracy.
2.Precise adjustments for accurate setting of both upper and lower positive stops.
3.Dovetail mounting allows quick change fixturing.

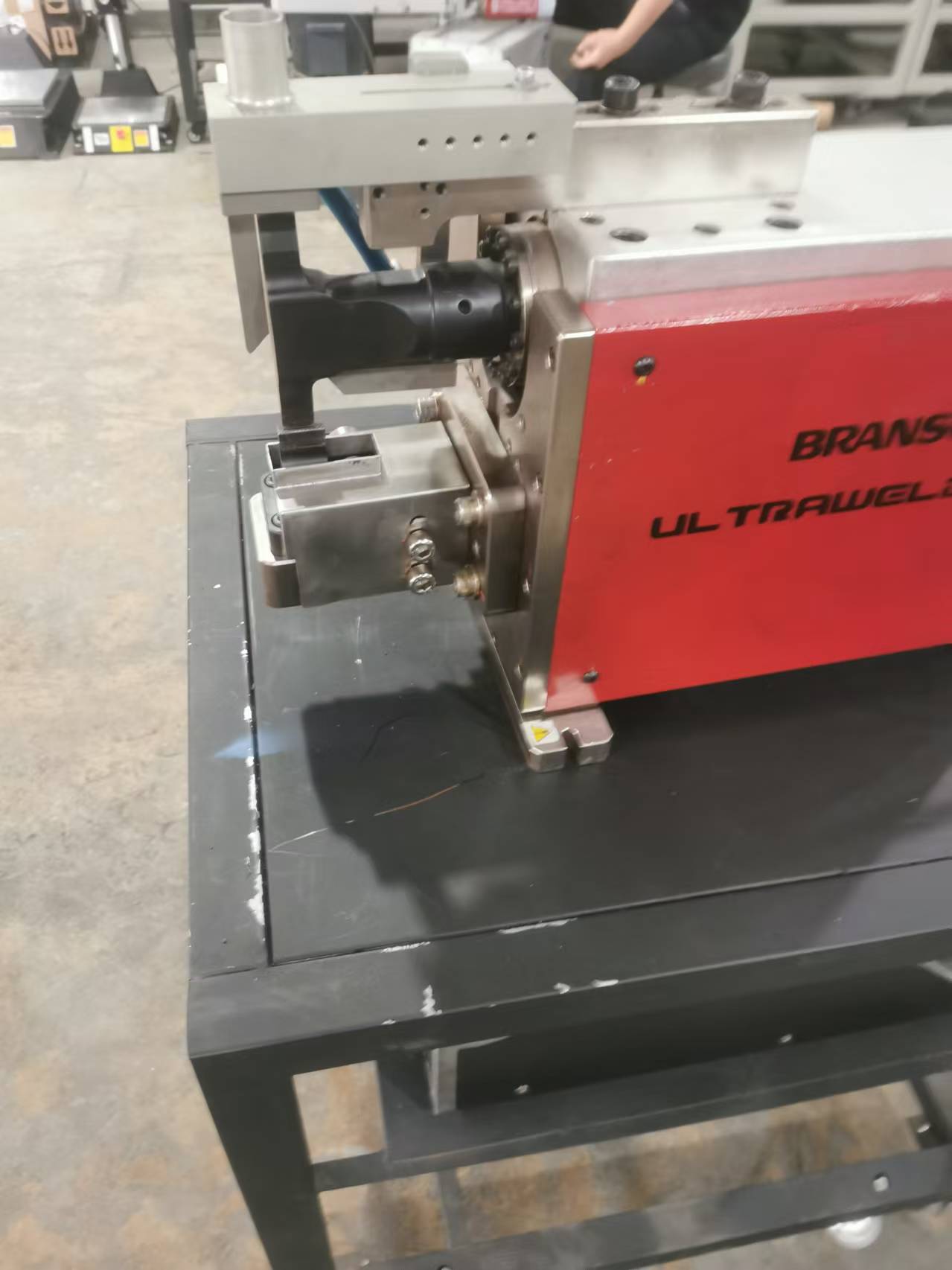

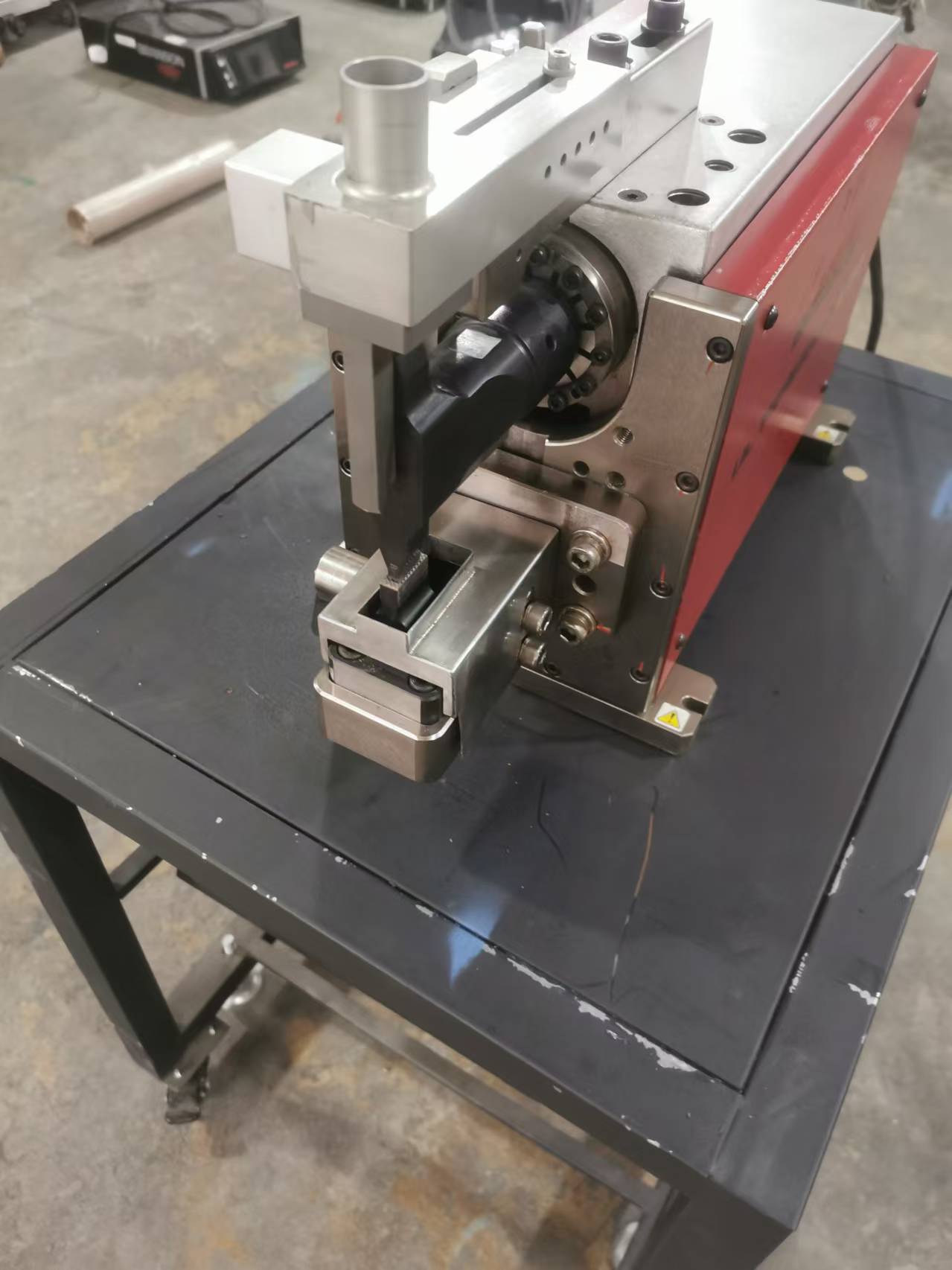

4.Solid steel horns for fast set up and minimum tooling cost–or- Titanium horns with economical replaceable tips.
2.Precise adjustments for accurate setting of both upper and lower positive stops.
3.Dovetail mounting allows quick change fixturing.
4.Solid steel horns for fast set up and minimum tooling cost–or- Titanium horns with economical replaceable tips.
5.Optional vortex cooling allows high-speed operation without heat buildup.
Machine Video← Click this link
Brand New & Used / Second hand available
