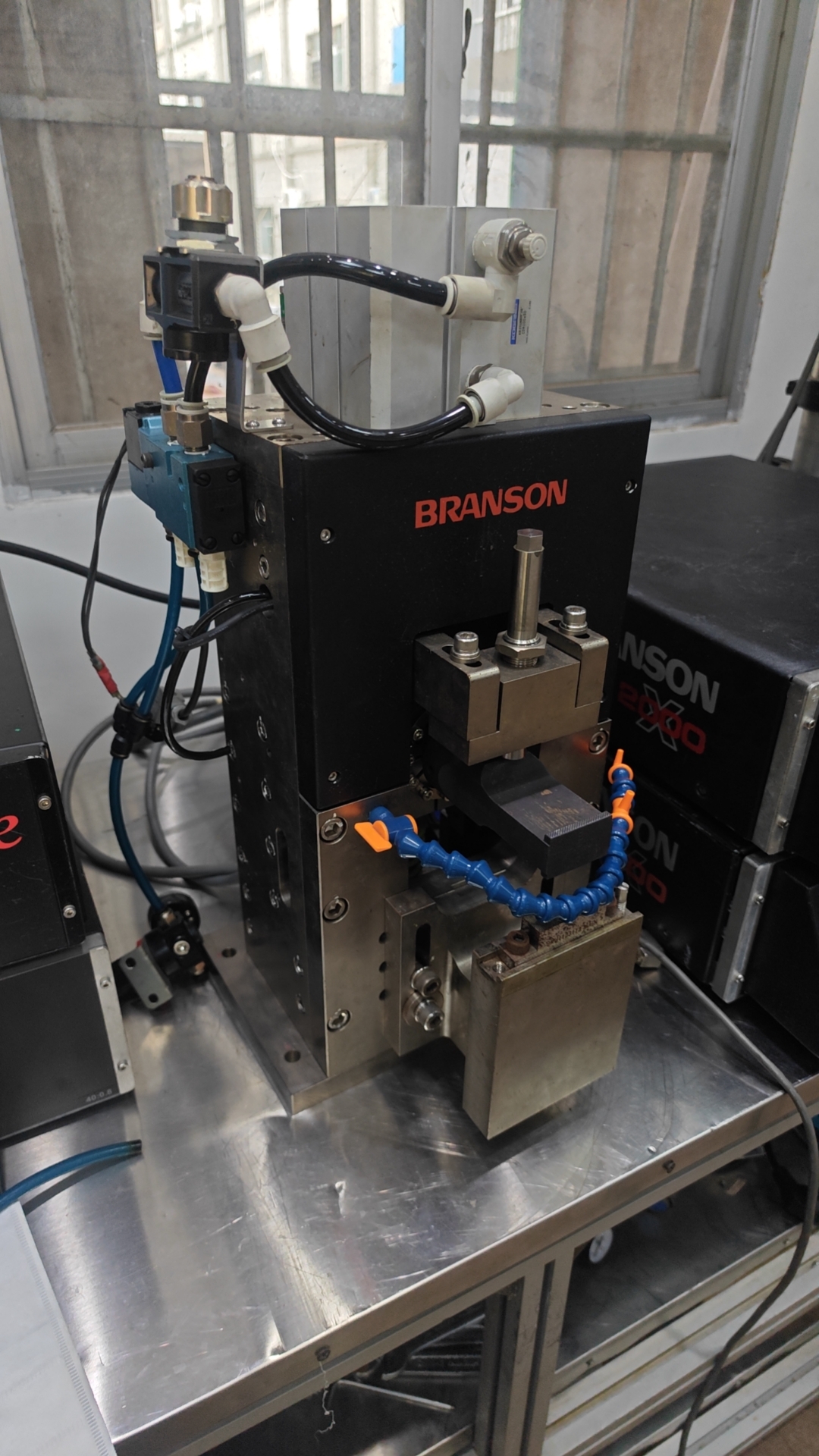

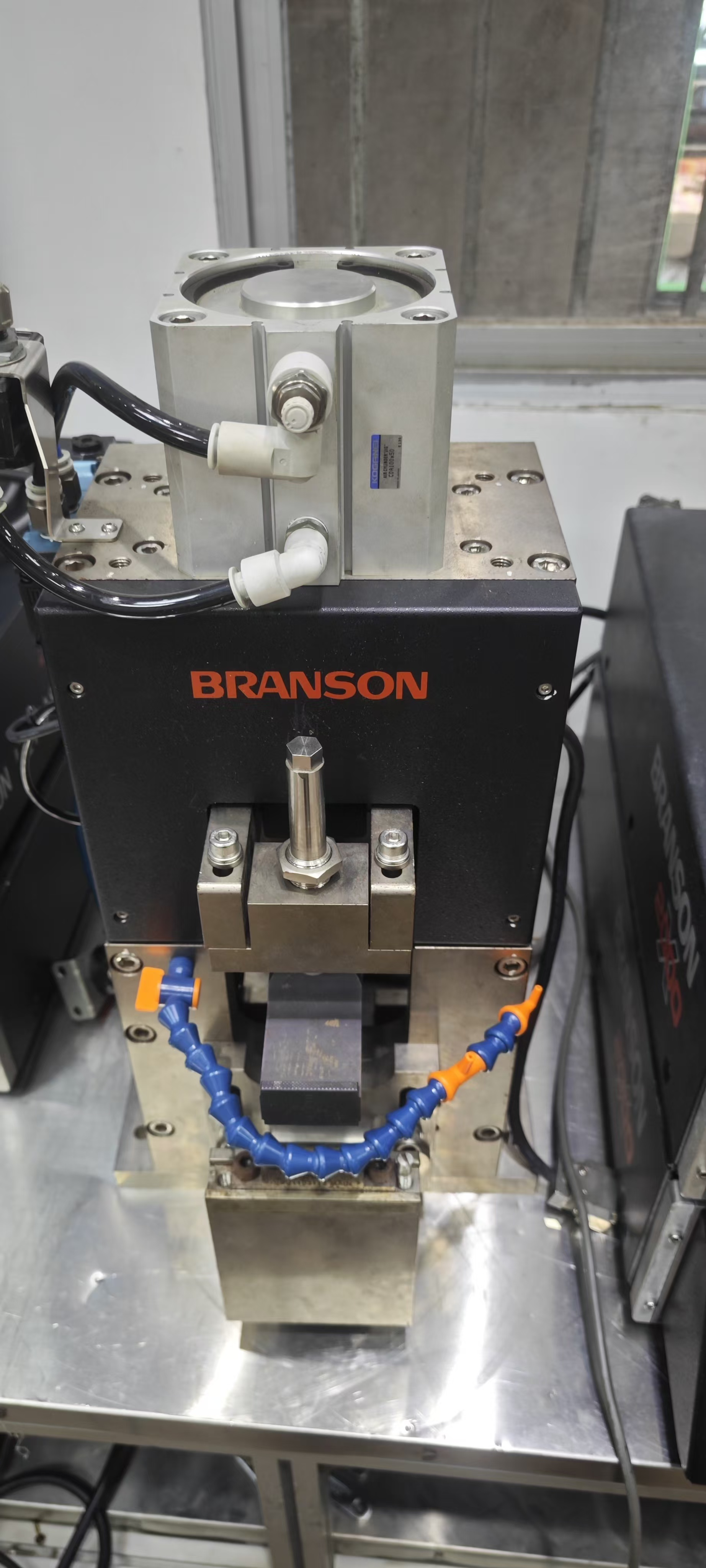

Branson GMX-20MA Ultrasonic Spot Welder

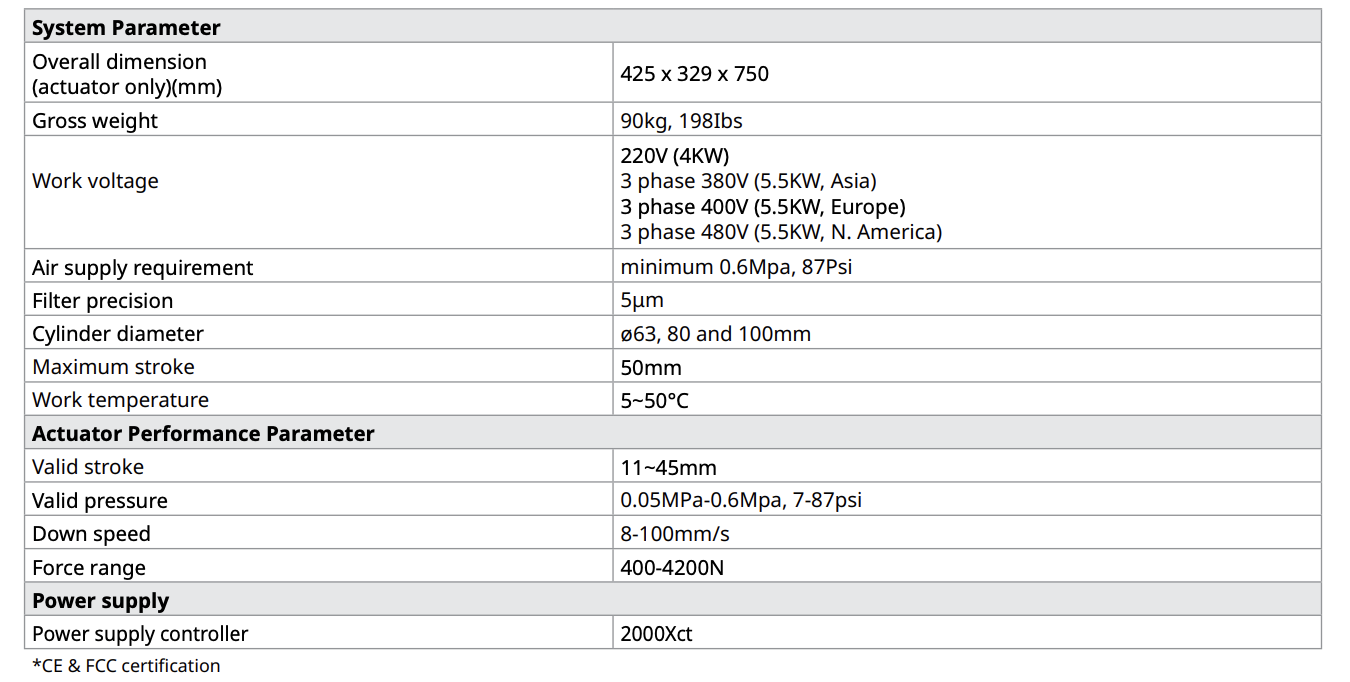

Overall dimension (actuator only):425 x 329 x 750 (mm) (L x W x H)
Gross weight:90 kg
Working voltage:220V (4KW), 3 phase 380V (5.5KW)
Air supply requirement: minimum 0.6Mpa, 87Psi
Maximum Stroke:50mm
Valid stroke:11~45mm
Power supply controller :2000Xct
Branson’s GMX-20MA is a newly developed ultrasonic spot welder with robust mechanical design and precise welding process monitoring. The GMX-20MA ensures high welding quality and consistency, the superior performance which Branson ultrasonic metal welding technology guarantees to our customers.
1.Dual linear bearings ensure a smooth, precise welding process.
2.Nodal support design precisely balances the Horn and Anvil during the welding process. This ensures effective transfer of Ultrasonic energy for improved weld quality and consistency.
3.Precise linear encoder enables precise height and distance control during welding to ensure welding accuracy.
4.Increased weld modes options make it applicable for wider range of welding applications.
5.Upgraded control & power supply provides multiple real time welding data and quality monitoring.
2.Nodal support design precisely balances the Horn and Anvil during the welding process. This ensures effective transfer of Ultrasonic energy for improved weld quality and consistency.
3.Precise linear encoder enables precise height and distance control during welding to ensure welding accuracy.
4.Increased weld modes options make it applicable for wider range of welding applications.
5.Upgraded control & power supply provides multiple real time welding data and quality monitoring.
6.Pressure trigger mechanism & load cell ensure accurate welding control & welding quality.
Machine Video← Click this link
Brand New & Used / Second hand available
