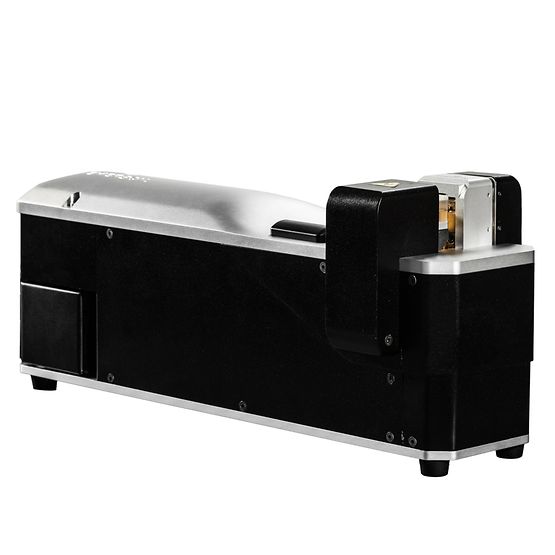

Branson GMX-W1 Wire Splicer

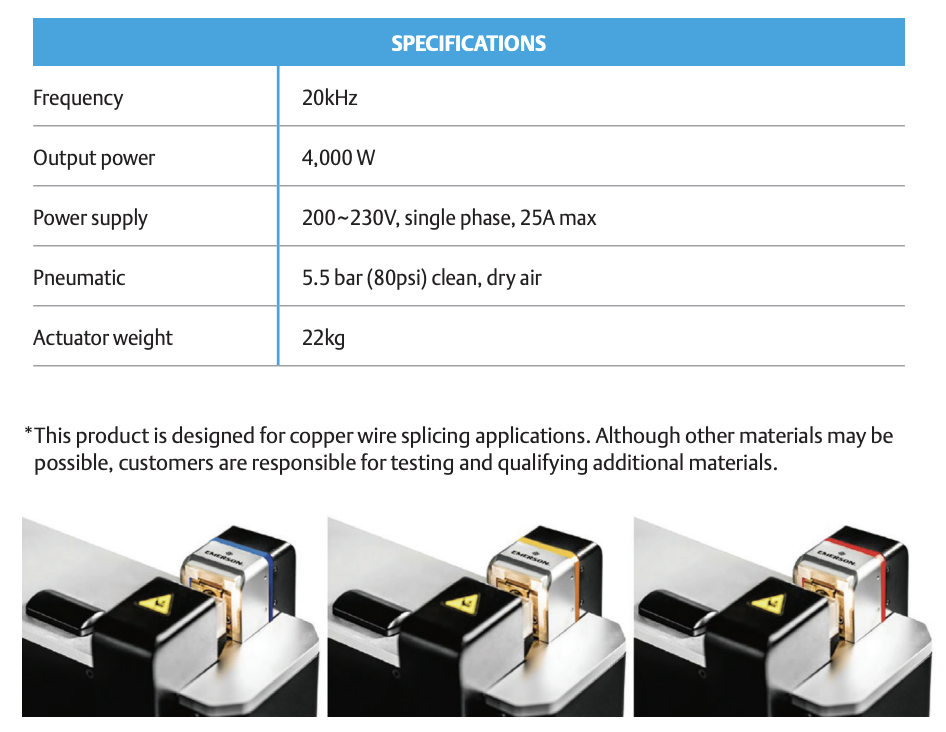

Frequency:20 kHz
Output power:4000 W
Actuation:Pneumatic
Cooling system:Air
Pneumatics type:5.5 bar (80 psi) clean, dry air
Special feature:Cutter Module
User interface:22" capacitive touch screen
Data interface:USB, Ethernet
Input power:200~230V single phase, 25A max
Overall dimensions:6.7" (W) x 7.9" (H) x 19.9" (L)
The Branson GMX-W1 joins wires reliably and quickly while providing maximum maneuverability. A user-friendly HMI and portable, ergonomic design make it easy to use as either an in-line or tabletop system. This product is designed for copper wire harness, although other materials may be possible upon testing and qualification.
1.Anti-side welding
2.Ergonomic design
3.User-friendly HMI
4.Automatic calibrations
5.LED color status indicator
6.22-inch capacitive touchscreen
7.In-line wire cutter module
8.Capable of splicing wires with cross section up to 40mm²
2.Ergonomic design
3.User-friendly HMI
4.Automatic calibrations
5.LED color status indicator
6.22-inch capacitive touchscreen
7.In-line wire cutter module
8.Capable of splicing wires with cross section up to 40mm²
9.Suitable for splicing wire with cross section of 0.13mm²
Machine Video← Click this link
Brand New available
